Bourns
PEC12R-4222F-S0024
Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT, COMPACT PACKAGE-3
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Bourns PEC12R-4222F-S0024 technical specifications.
General
Built in Switch
Yes
Detent
Yes
Encoder Type
Mechanical
Height
13.4mm
Length
13.4mm
Max Operating Temperature
70°C
Min Operating Temperature
-30°C
Mount
Through Hole, PCB
Number of Channels
2
Orientation
Vertical
Output Type
Quadrature, Incremental
Package Quantity
75
Packaging
Bulk
RoHS Compliant
Yes
Series
PEC12R
Termination
PC Pin
Width
12.5mm
Compliance
RoHS
Compliant
Datasheet
Bourns PEC12R-4222F-S0024 Datasheet
Download the complete datasheet for Bourns PEC12R-4222F-S0024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

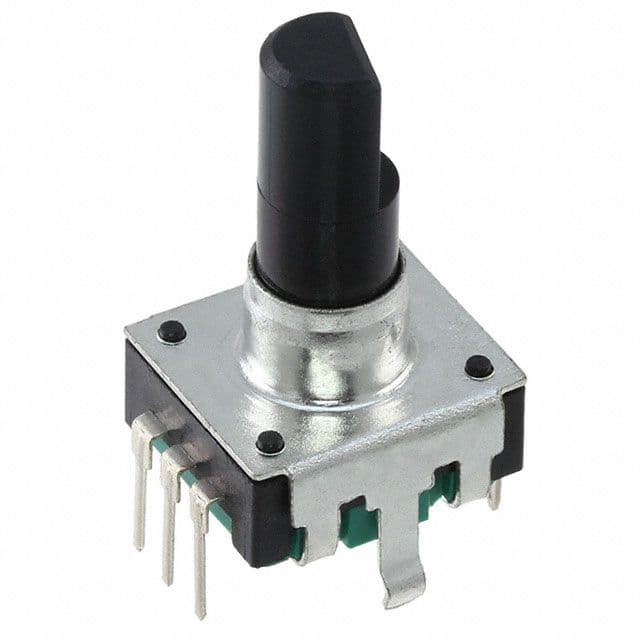

Product Images
