Bourns
PEC16-4020F-N0024
Mechanical Encoder Rotary Incremental Flat 0.02N.m Straight Quadrature Digital Square Wave 24PPR Through Hole PC Pin
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns PEC16-4020F-N0024 technical specifications.
General
Built in Switch
No
Detent
No
Encoder Type
Mechanical
Height
17.3mm
Length
28mm
Max Operating Temperature
70°C
Min Operating Temperature
-30°C
Max Supply Voltage (DC)
5V
Mount
Through Hole, Panel, PCB
Number of Channels
2
Orientation
Vertical
Output Type
Quadrature, Incremental
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PEC16
Termination
PC Pins
Type
Mechanical
Width
16mm
Compliance
RoHS
Compliant
Datasheet
Bourns PEC16-4020F-N0024 Datasheet
Download the complete datasheet for Bourns PEC16-4020F-N0024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

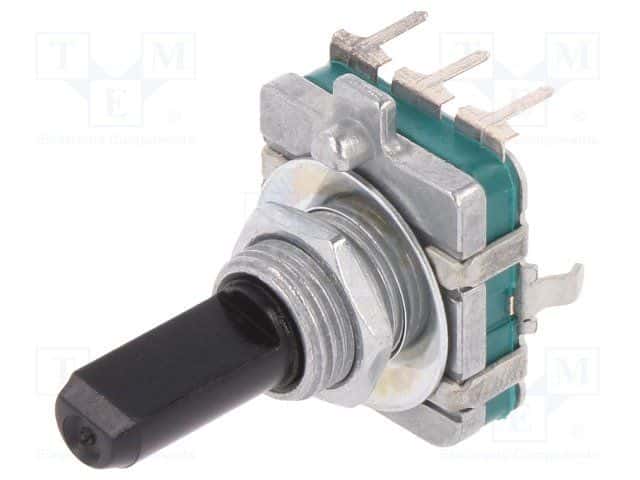

Product Images
