Vertical mechanical rotary encoder with 24 pulses per revolution (PPR) and quadrature output. Features a built-in switch and detent for tactile feedback. Designed for through-hole mounting on PCBs or panels, with a PC pin termination. Operates within a temperature range of -30°C to 70°C and supports a maximum supply voltage of 5V DC.
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Bourns PEC16-4220F-S0024 technical specifications.
General
| Built in Switch | Yes |
| Detent | Yes |
| Encoder Type | Mechanical |
| Height | 17.3mm |
| Length | 28mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Max Supply Voltage (DC) | 5V |
| Mount | Through Hole, Panel, PCB |
| Number of Channels | 2 |
| Number of Positions | 24 |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PEC16 |
| Termination | PC Pin |
| Type | Mechanical |
| Width | 16mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns PEC16-4220F-S0024 Datasheet
Download the complete datasheet for Bourns PEC16-4220F-S0024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

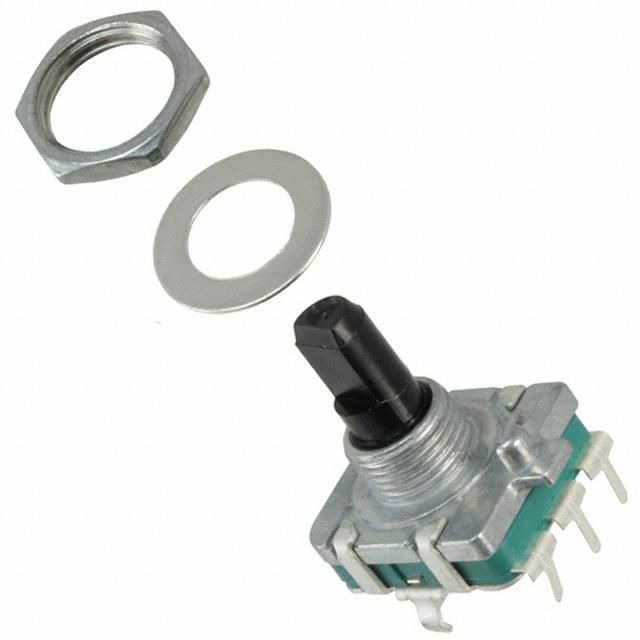

Product Images
