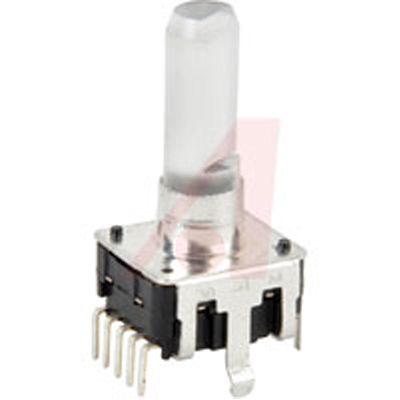

This 2-channel vertical optical encoder features a mechanical encoder type with built-in switch and detent. It operates within a temperature range of -10°C to 70°C and is available in a ROHS compliant package-7. The encoder is designed for through hole or PCB mount and offers quadrature and incremental output types. It is RoHS compliant but does not meet Reach SVHC requirements.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns PEL12D-2226F-S3024 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bourns PEL12D-2226F-S3024 technical specifications.
| Built in Switch | Yes |
| Detent | Yes |
| Encoder Type | Mechanical |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Mount | Through Hole, PCB |
| Number of Channels | 2 |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PEL12D |
| Termination | PC Pin |
| Weight | 0.105822oz |
| RoHS | Compliant |
