Bourns
PEL12D-4225S-S2024
Mechanical Encoder Rotary Incremental Knurl 0.005N.m Straight Quadrature Digital Square Wave 24PPR Through Hole PC Pin
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Bourns PEL12D-4225S-S2024 technical specifications.
General
Built in Switch
Yes
Detent
Yes
Encoder Type
Mechanical
Max Operating Temperature
70°C
Min Operating Temperature
-10°C
Mount
Through Hole, PCB
Number of Channels
2
Orientation
Vertical
Output Type
Quadrature, Incremental
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
PEL12D
Termination
PC Pin
Weight
0.105822oz
Compliance
RoHS
Compliant
Datasheet
Bourns PEL12D-4225S-S2024 Datasheet
Download the complete datasheet for Bourns PEL12D-4225S-S2024 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

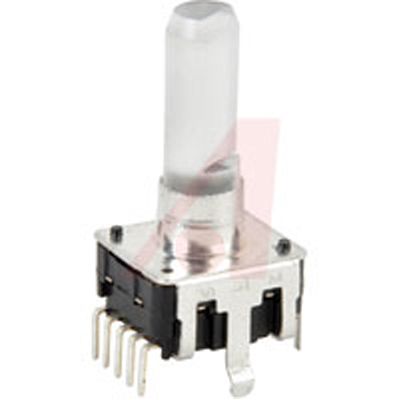

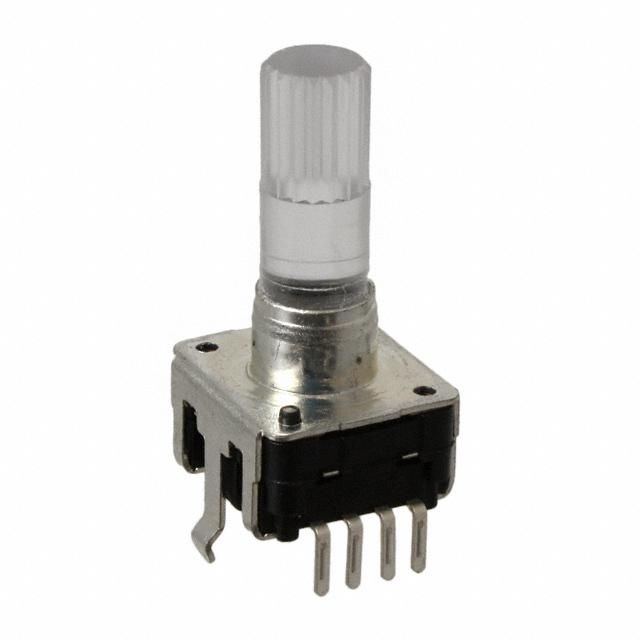

Product Images
