SMD/SMT telecom transformer featuring a 1:1 turns ratio with 2(1CT:1CT) configuration. Offers 350µH inductance, 0.6Ω primary DCR, and 1.1Ω secondary DCR. Designed for surface mounting with gull wing leads, this shielded component operates from 100kHz to 100MHz, with a maximum DC current of 8mA and 1.5kV isolation voltage. Insertion loss is 1.1dB, and it operates within a 0°C to 70°C temperature range.
Frequency100MHz
PackageSMD/SMT
MountingSurface Mount
Inductance350uH
Quick Jump:
Technical Specifications
Bourns PT61017PEL technical specifications.
General
| Package/Case | SMD/SMT |
| Height | 5.65mm |
| Inductance | 350uH |
| Insertion Loss | 1.1dB |
| Isolation Voltage | 1.5kV |
| Lead/Base Style | Gull Wing |
| Length | 12.8mm |
| Max DC Current | 8mA |
| Max Frequency | 100MHz |
| Min Frequency | 100kHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Package Quantity | 600 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Turns Ratio | 1:1 |
| Weight | 0.024692oz |
| Width | 6.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns PT61017PEL Datasheet
Download the complete datasheet for Bourns PT61017PEL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

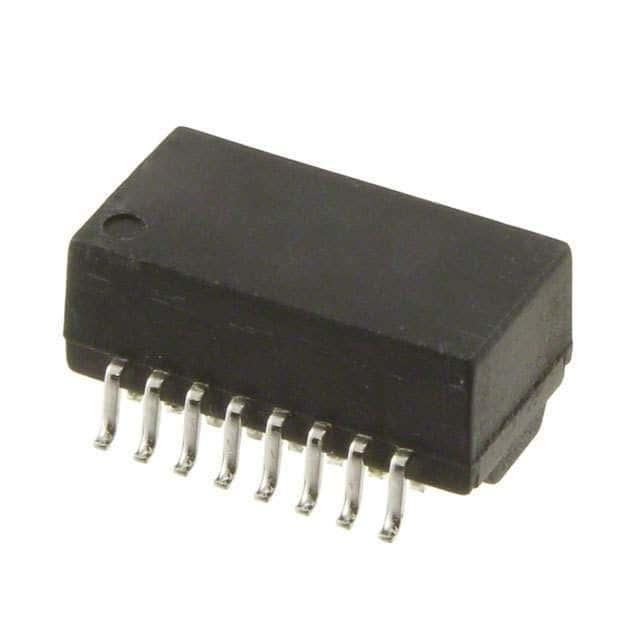

Product Images
