Absolute magnetic rotary encoder featuring SSI interface and binary output. Offers 10-bit resolution with a vertical orientation and screw/chassis mount. Operates within a 4.5V to 5.5V supply voltage range, with a maximum operating temperature of 125°C. Connector termination is standard.
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Broadcom AEAT-6010-A06 technical specifications.
General
Built in Switch
No
Detent
No
Encoder Type
Magnetic
Interface
SSI
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Chassis Mount, Screw
Number of Channels
1
Operating Supply Voltage
5V
Orientation
Vertical
Output
SERIAL
Output Type
Binary
Package Quantity
280
Reach SVHC Compliant
No
Resolution
10b
RoHS Compliant
Yes
Series
AEAT-60xx
Termination
Connector
Compliance
RoHS
Compliant
Datasheet
Broadcom AEAT-6010-A06 Datasheet
Download the complete datasheet for Broadcom AEAT-6010-A06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

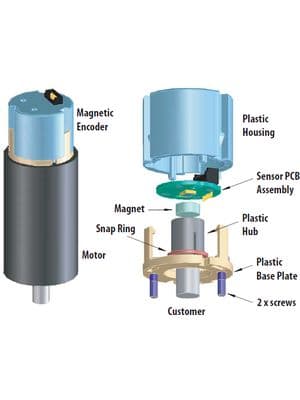

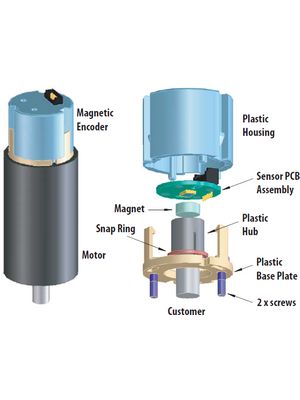

Product Images
