Rotary magnetic encoder with SSI interface, outputting binary code. Features 12-bit resolution and a vertical orientation for chassis mounting. Operates within a temperature range of -40°C to 125°C, with a supply voltage range of 4.5V to 5.5V. Termination is via connector.
MountingChassis Mount
Quick Jump:
Technical Specifications
Broadcom AEAT-6012-A06 technical specifications.
General
| Built in Switch | No |
| Detent | No |
| Encoder Type | Magnetic |
| Interface | SSI |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Chassis Mount |
| Number of Channels | 1 |
| Orientation | Vertical |
| Output | SERIAL |
| Output Type | Binary |
| Package Quantity | 280 |
| Reach SVHC Compliant | No |
| Resolution | 12b |
| Series | AEAT-60xx |
| Termination | Connector |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom AEAT-6012-A06 Datasheet
Download the complete datasheet for Broadcom AEAT-6012-A06 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

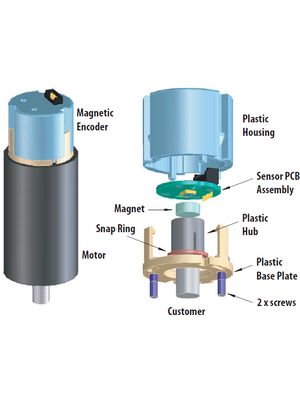

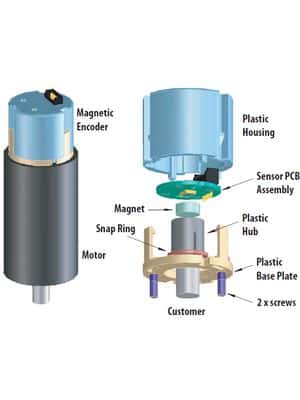

Product Images
