Broadcom
AEAT-6600-T16
Magnetic Encoder Rotary Incremental Straight Quadrature Digital Square Wave Surface Mount Gull Wing
PackageTSSOP
Current17mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom AEAT-6600-T16 technical specifications.
General
Built in Switch
No
Package/Case
TSSOP
Detent
No
Encoder Type
Magnetic
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
3
Output Type
Quadrature, Incremental
Overall Depth
4.4mm
Package Quantity
970
Packaging
Tape and Reel
Reach SVHC Compliant
No
Resolution
16b
RoHS Compliant
Yes
Supply Current
17mA
Termination
Gull Wing
Compliance
RoHS
Compliant
Datasheet
Broadcom AEAT-6600-T16 Datasheet
Download the complete datasheet for Broadcom AEAT-6600-T16 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

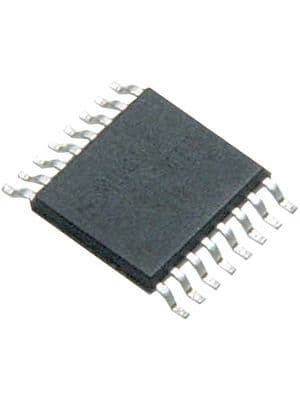

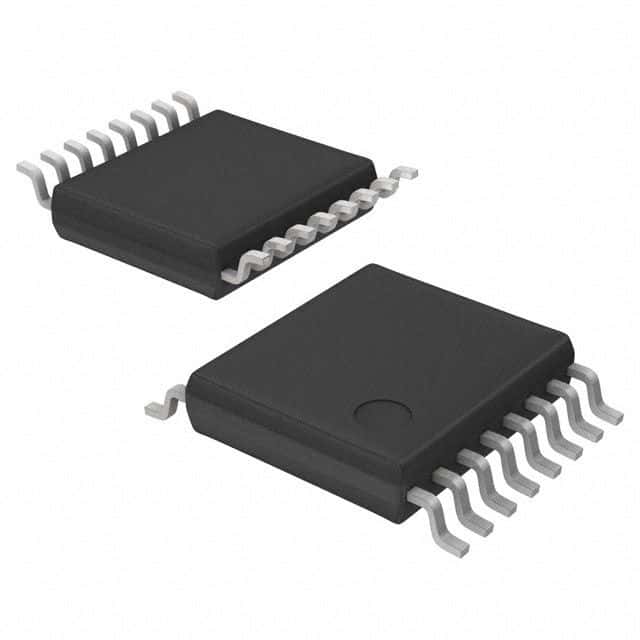

Product Images
