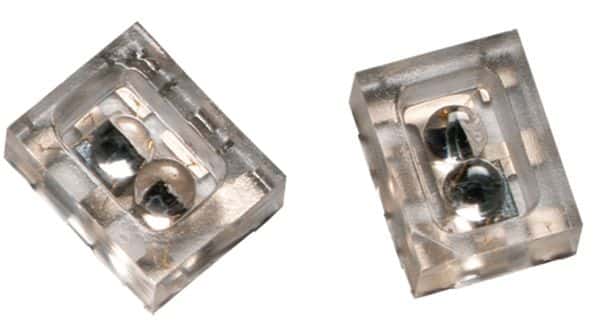

Digital square wave optical encoder for linear incremental motion sensing. Features two output channels and operates with a 5V supply voltage (4.5V to 5.5V range). Surface mount (SMD/SMT) package with a sensing distance of 0.079 inches. Supports a frequency up to 30kHz with an operating supply current of 2.2mA. RoHS compliant, with an operating temperature range of -20°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom AEDR-8300-1Q2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom AEDR-8300-1Q2 technical specifications.
| Built in Switch | No |
| Package/Case | SMD/SMT |
| Current Rating | 5mA |
| Frequency | 30kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount, Through Hole |
| Number of Channels | 2 |
| Operating Supply Current | 2.2mA |
| Overall Depth | 3.96mm |
| Package Quantity | 100 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sensing Distance | 0.079inch |
| Termination | SMD/SMT |
| Voltage Rating | 5V |
| Width | 6.2mm |
| RoHS | Compliant |
Download the complete datasheet for Broadcom AEDR-8300-1Q2 to view detailed technical specifications.
