Surface mount, single-channel solid-state relay featuring transistor output and 3750V isolation. Designed for DC input with a maximum input voltage of 1.6V and 20mA forward current. This RoHS compliant component supports a load current of up to 200mA with a maximum output voltage of 60V. Packaged in SOIC with gull wing termination, it operates within a temperature range of -40°C to 85°C.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ASSR-1218-503E technical specifications.
General
| Package/Case | SOIC |
| Forward Current | 20mA |
| Input Current | 20mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Load Current | 200mA |
| Max Input Current | 20mA |
| Max Input Voltage | 1.6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Output Voltage | 60V |
| Mount | Surface Mount |
| Output Current | 200mA |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ASSR |
| Termination | Gull Wing |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom ASSR-1218-503E Datasheet
Download the complete datasheet for Broadcom ASSR-1218-503E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

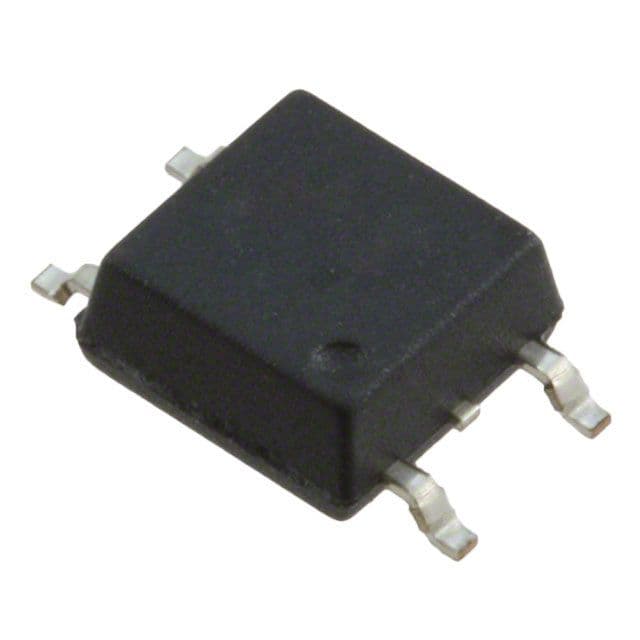

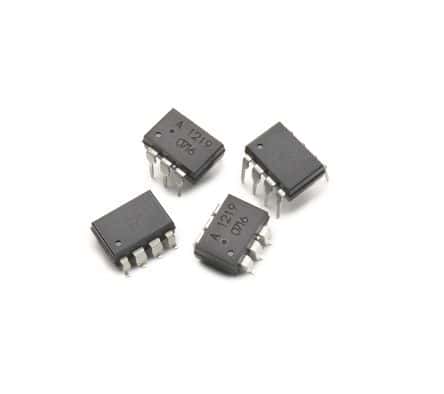

Product Images
