Optical Solid State Relay (SSR) with transistor output, featuring 1 channel and 3.75kV isolation. Surface mountable in a SOP package with gold contact plating. Operates with DC input current up to 20mA and a maximum input voltage of 1.65V. Handles load currents up to 1A with a maximum output voltage of 60V. Operating temperature range is -40°C to 85°C.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ASSR-1510-503E technical specifications.
General
| Package/Case | SOP |
| Contact Plating | Gold |
| Forward Current | 20mA |
| Input Current | 20mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Load Current | 1A |
| Max Input Current | 20mA |
| Max Input Voltage | 1.65V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 60V |
| Mount | Surface Mount |
| On-State Resistance | 500mR |
| Output Current | 1A |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | ASSR |
| Termination | Gull Wing |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom ASSR-1510-503E Datasheet
Download the complete datasheet for Broadcom ASSR-1510-503E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

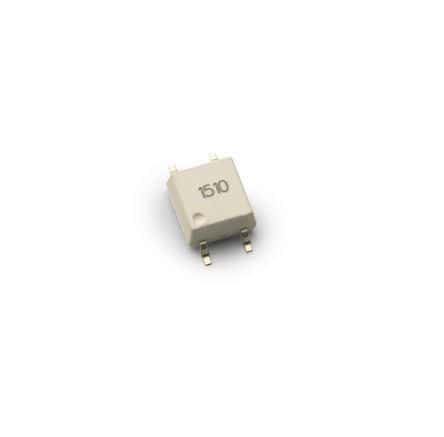

Product Images
