Optical Solid State Relay, 1-Channel, 1A Load Current, 60V Max Output Voltage, DC Input Type with 20mA Input Current. Features 3.75kV Isolation Voltage and a 2ms Turn-On Delay. Surface Mount package with Tin, Matte contact plating and Gull Wing termination. Operates within a -40°C to 85°C temperature range.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ASSR-1511-301E technical specifications.
General
| Package/Case | SMD/SMT |
| Contact Plating | Tin, Matte |
| Depth | 6.35mm |
| Height | 4.19mm |
| Input Current | 20mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Length | 9.65mm |
| Load Current | 1A |
| Max Input Current | 20mA |
| Max Input Voltage | 1.65V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 60V |
| Mount | Surface Mount |
| Output Current | 1A |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ASSR |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Turn-On Delay Time | 2ms |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom ASSR-1511-301E Datasheet
Download the complete datasheet for Broadcom ASSR-1511-301E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

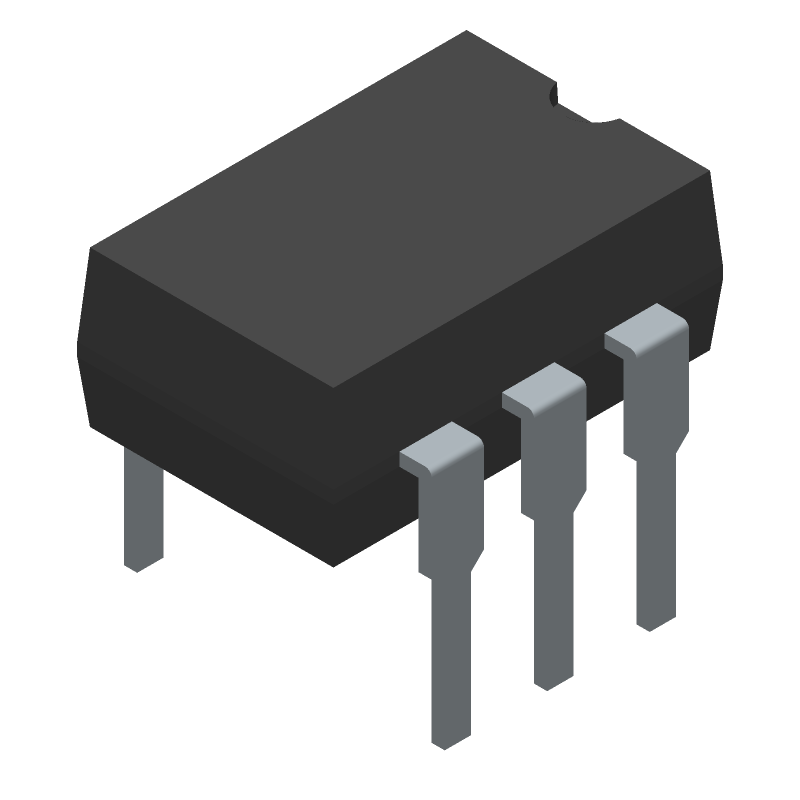

Product Images
