Surface mount, 1-channel solid-state relay featuring DC input and transistor output. Offers 3750V isolation and a 400V maximum output voltage with a 120mA load current capability. Operates within a -40°C to 85°C temperature range, packaged in a compact SOP-4 form factor with gull wing termination. This RoHS compliant component is designed for PCB mounting.
PackageSOP
MountingSurface Mount, PCB
Quick Jump:
Technical Specifications
Broadcom ASSR-4110-003E technical specifications.
General
| Package/Case | SOP |
| Depth | 4.4mm |
| Forward Current | 20mA |
| Height | 2mm |
| Input Current | 20mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Length | 4.3mm |
| Load Current | 120mA |
| Max Forward Surge Current (Ifsm) | 50mA |
| Max Input Current | 20mA |
| Max Input Voltage | 1.65V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 120mA |
| Max Output Voltage | 400V |
| Mount | Surface Mount, PCB |
| Number of Contacts | 1 |
| On-State Resistance | 25R |
| Output Current | 120mA |
| Output Voltage | 400V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | ASSR |
| Termination | Gull Wing |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom ASSR-4110-003E Datasheet
Download the complete datasheet for Broadcom ASSR-4110-003E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

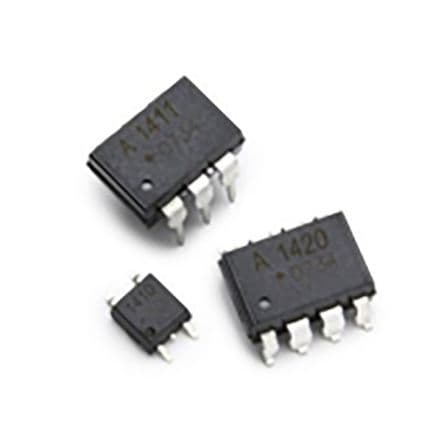

Product Images
