Technical Specifications
Broadcom HEDL-5640#A13 technical specifications.
General
| Built in Switch | No |
| Detent | No |
| Encoder Type | Optical |
| Lead Length | 483mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Chassis Mount |
| Number of Channels | 3 |
| Operating Supply Voltage | 5V |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 20 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HEDL |
| Termination | Cable |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HEDL-5640#A13 Datasheet
Download the complete datasheet for Broadcom HEDL-5640#A13 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

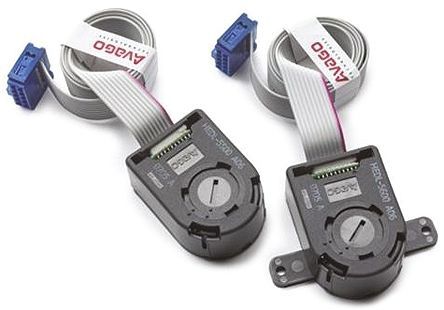

Product Images
