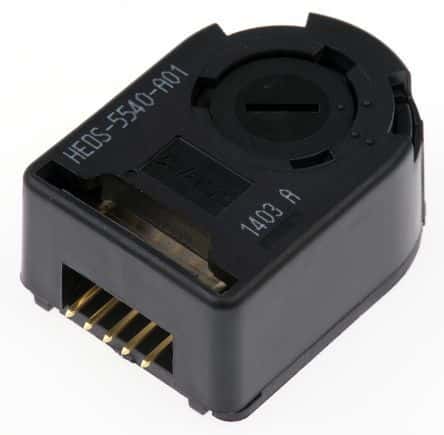

This optical encoder is a 3-channel device with a nominal supply current of 57mA and an operating supply voltage of 5V. It has a maximum operating temperature of 100°C and a minimum operating temperature of -40°C. The encoder is designed for chassis mount and has a through hole package type. It is compliant with RoHS standards and is packaged in a tray with 25 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HEDS-5540#A01 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Built in Switch | No |
| Package/Case | Metal |
| Current Rating | 5mA |
| Detent | No |
| Encoder Type | Optical |
| Lead Free | Lead Free |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount |
| Nominal Supply Current | 57mA |
| Number of Channels | 3 |
| Operating Supply Voltage | 5V |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 25 |
| Packaging | Tray |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HEDS |
| Termination | Through Hole |
| RoHS | Compliant |
Download the complete datasheet for Broadcom HEDS-5540#A01 to view detailed technical specifications.
