This optical encoder features a metal package and operates over a temperature range of -40°C to 100°C. It is designed for vertical mounting and has a chassis mount configuration. The encoder has three channels and provides a quadrature, incremental output type. It is supplied with 5V and is available in a tray packaging with 25 units per package.
PackageMetal
MountingChassis Mount
Quick Jump:
Technical Specifications
Broadcom HEDS-5545-A06 technical specifications.
General
| Built in Switch | No |
| Package/Case | Metal |
| Detent | No |
| Encoder Type | Optical |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Chassis Mount |
| Number of Channels | 3 |
| Operating Supply Voltage | 5V |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 25 |
| Packaging | Tray |
| Series | HEDS |
| Termination | Through Hole |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HEDS-5545-A06 Datasheet
Download the complete datasheet for Broadcom HEDS-5545-A06 to view detailed technical specifications.
No datasheet is available for this part.

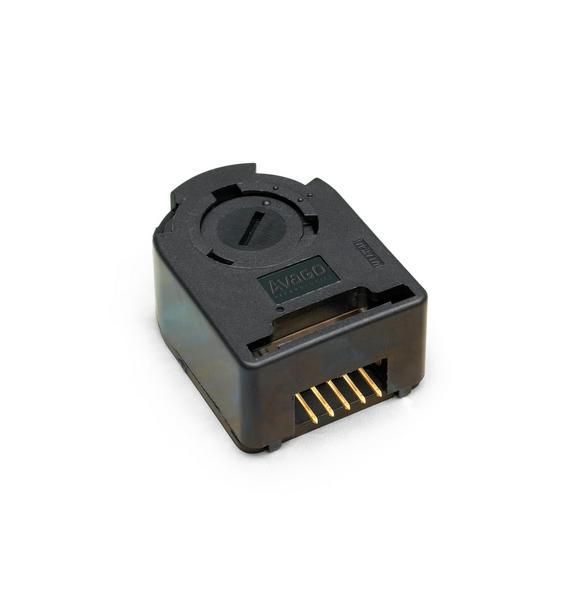

Product Images
