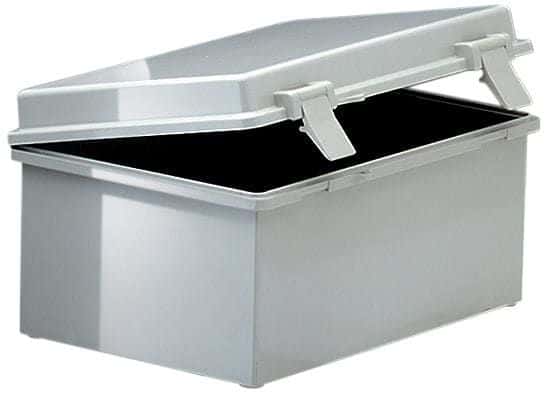

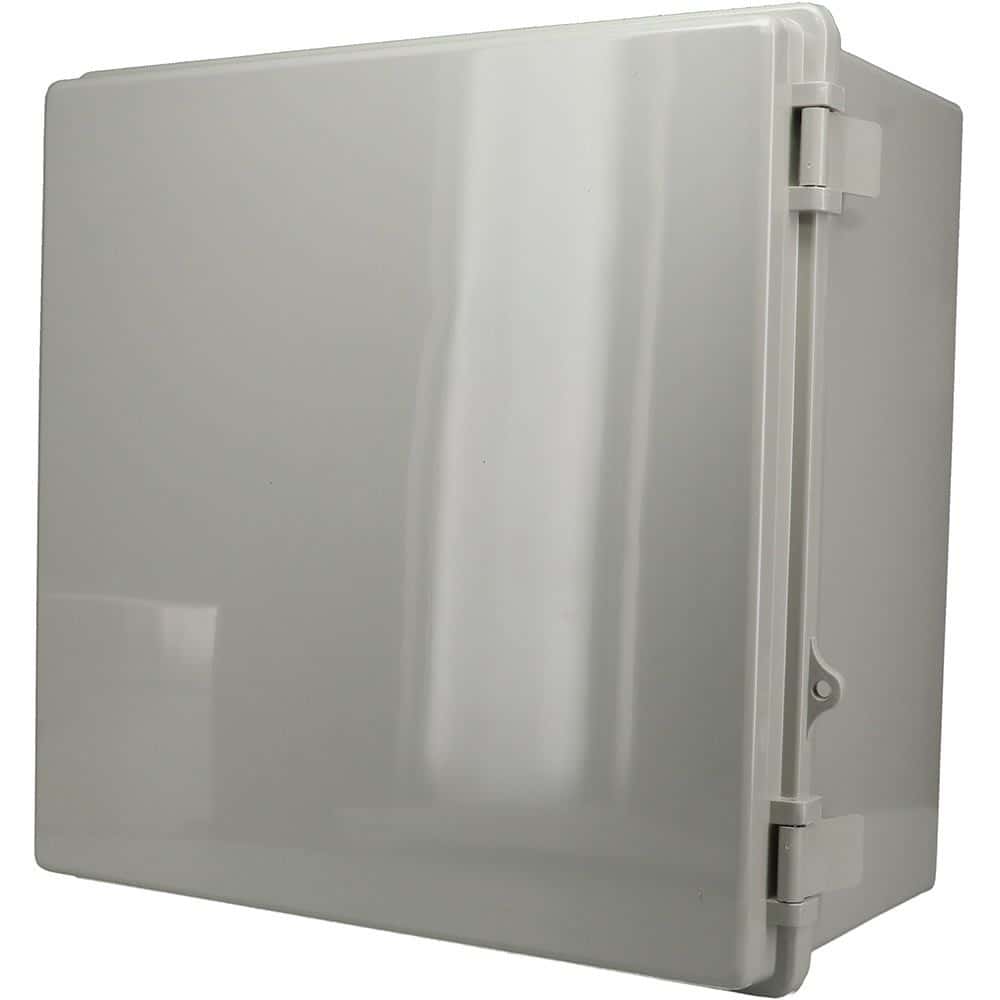

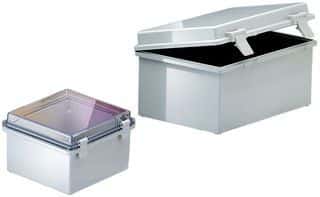

This grey general purpose enclosure is made from PC, plastic, ABS, and polycarbonate materials. It has a maximum operating temperature of 70°C and a minimum operating temperature of 40°C. The enclosure is rated for IP65 and IP66 environments and is compliant with RoHS regulations. It measures 13 inches in depth, 7.042 inches in height, and 13.01 inches in length, with a thickness of 0.128 inches and a weight of 4.4 pounds.
Quick Jump:
Technical Specifications
BUD Industries NBB-10245 technical specifications.
General
| Approvals | NEMA |
| Body Color | Grey |
| Color | Grey |
| Depth | 13inch |
| Flammability Rating | UL94 5VB |
| Height | 7.042inch |
| Housing Color | Grey |
| Lead Free | Lead Free |
| Length | 13.01inch |
| Material | PC, Plastic, ABS, Polycarbonate |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 40°C |
| Package Quantity | 1 |
| Ratings | IP65, IP66 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | NBB |
| Thickness | 0.128inch |
| Weight | 4.4lb |
| Width | 13inch |
Compliance
| RoHS | Compliant |
Datasheet
BUD Industries NBB-10245 Datasheet
Download the complete datasheet for BUD Industries NBB-10245 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
