General purpose enclosure, ABS plastic construction, grey housing color. Features a 2.52-inch length, 2.28-inch width, and 1.38-inch depth. Rated IP65 and IP66, with a UL94 HB flammability rating. Operates within a temperature range of -40°C to 80°C. Designed for wall mounting.
MountingWall
Quick Jump:
Technical Specifications
BUD Industries PN-1320-DG technical specifications.
General
| Approvals | UL |
| Color | Grey |
| Depth | 1.38inch |
| Flammability Rating | UL94 HB |
| Housing Color | Grey |
| Lead Free | Lead Free |
| Length | 2.52inch |
| Material | Plastic, ABS |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Mount | Wall |
| Packaging | Bulk |
| Ratings | IP65, IP66 |
| Reach SVHC Compliant | Unknown |
| Series | PN |
| Weight | 0.156lb |
| Width | 2.283inch |
Compliance
| RoHS | Compliant |
Datasheet
BUD Industries PN-1320-DG Datasheet
Download the complete datasheet for BUD Industries PN-1320-DG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

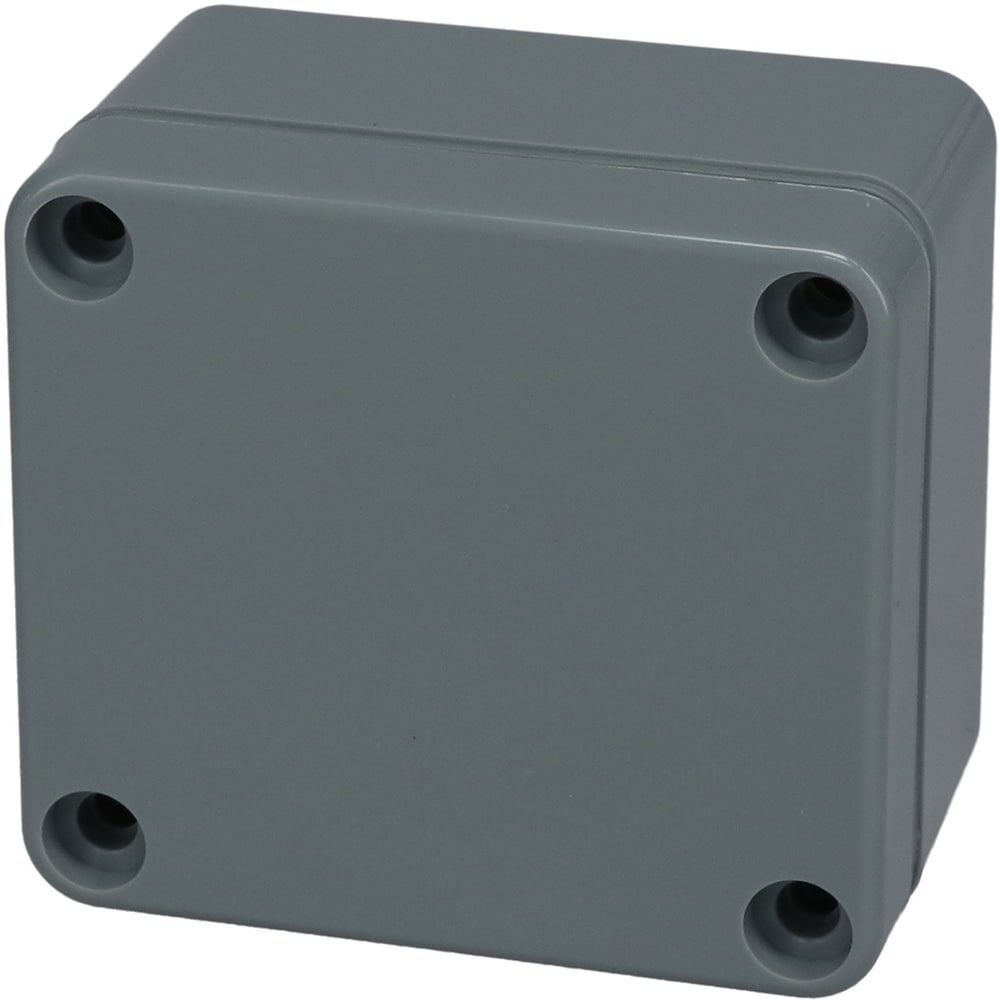

Product Images
