This grey polycarbonate enclosure is designed for wall mounting and features a flammability rating of UL94 HB. It has a maximum operating temperature of 120°C and a minimum operating temperature of -40°C. The enclosure is lead-free and has a weight of 2.1lb. It measures 11.812 inches in length, 9.056 inches in width, 4.37 inches in depth, and 4.39 inches in height. The enclosure is rated for IP66 and IP65 environments.
MountingWall
Quick Jump:
Technical Specifications
BUD Industries PN-1343-C technical specifications.
General
| Approvals | UL |
| Color | Grey, Clear |
| Depth | 4.37inch |
| Flammability Rating | UL94 HB |
| Height | 4.39inch |
| Housing Color | Grey |
| Lead Free | Lead Free |
| Length | 11.812inch |
| Material | PC, Polycarbonate, Plastic |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -40°C |
| Mount | Wall |
| Package Quantity | 1 |
| Ratings | IP66, IP65 |
| Series | PN |
| Thickness | 0.16inch |
| Weight | 2.1lb |
| Width | 9.056inch |
Compliance
| RoHS | Compliant |
Datasheet
BUD Industries PN-1343-C Datasheet
Download the complete datasheet for BUD Industries PN-1343-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

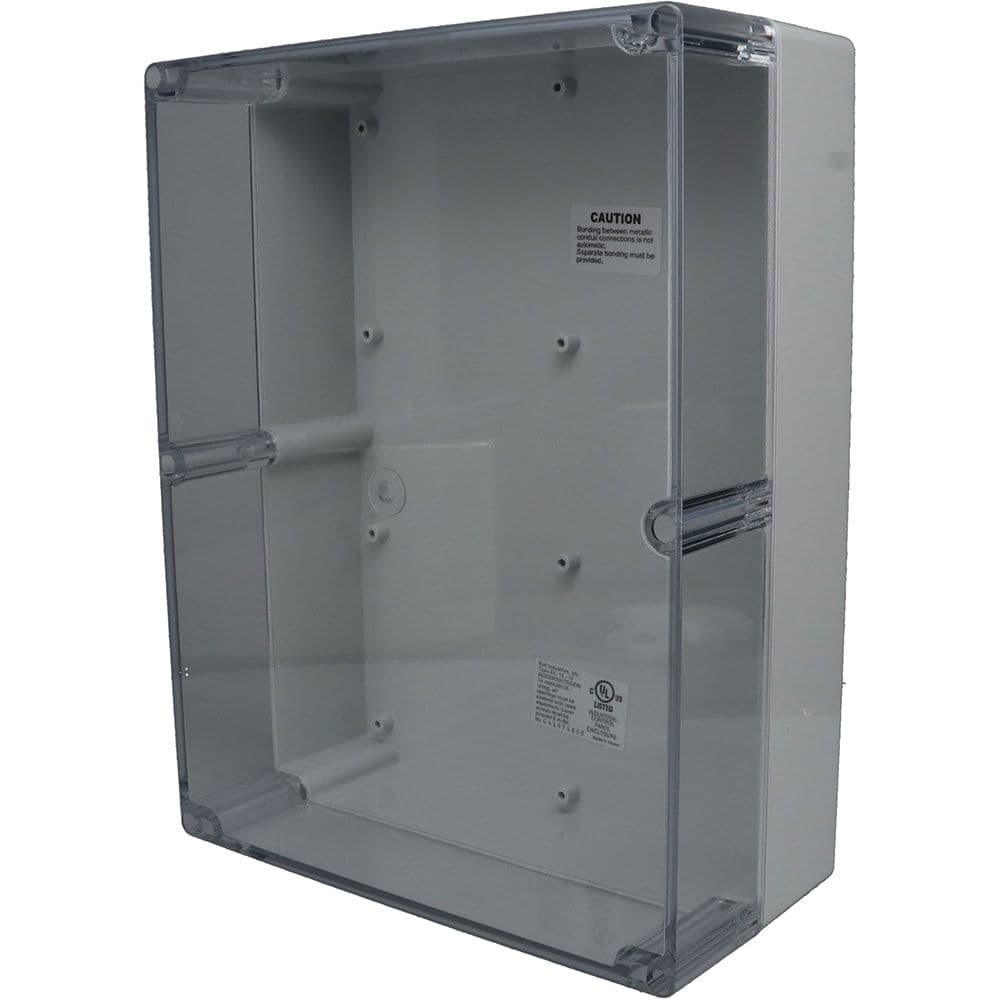

Product Images
