Schottky diode with 600V repetitive reverse voltage and 4A average rectified current. Features a TO-220-2 through-hole package, 175°C maximum operating temperature, and 10.8W maximum power dissipation. Offers a 65A peak non-repetitive surge current and 0ns reverse recovery time. RoHS compliant and lead-free.
PackageTO-220-2
MountingThrough Hole
Quick Jump:
Technical Specifications
Cree C3D02060F technical specifications.
General
| Average Rectified Current | 4A |
| Package/Case | TO-220-2 |
| Forward Current | 4A |
| Height | 16.07mm |
| Lead Free | Lead Free |
| Length | 10.3mm |
| Max Forward Surge Current (Ifsm) | 20A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 10.8W |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 100uA |
| Max Reverse Leakage Current | 50uA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 65A |
| Mount | Through Hole |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 65A |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 0ns |
| RoHS Compliant | Yes |
| Series | Z-Rec® |
| Width | 4.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Cree C3D02060F Datasheet
Download the complete datasheet for Cree C3D02060F to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

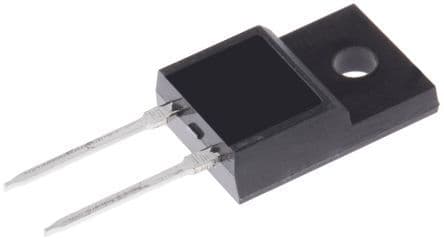

Product Images
