Schottky diode array with a maximum repetitive reverse voltage of 1.2kV (1200V) and a maximum DC reverse voltage of 1.2kV. Features an average rectified current of 9A and a forward current of 18A, with a peak non-repetitive surge current of 46A. Operates across a wide temperature range from -55°C to 175°C, with a maximum power dissipation of 187W. Packaged in a TO-247 through-hole mount, this RoHS compliant component offers a reverse recovery time of 0ns.
PackageTO-247
MountingThrough Hole
Quick Jump:
Technical Specifications
Cree C4D10120D technical specifications.
General
| Average Rectified Current | 9A |
| Package/Case | TO-247 |
| Forward Current | 18A |
| Height | 21.1mm |
| Length | 16.13mm |
| Max Forward Surge Current (Ifsm) | 46A |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 187W |
| Max Repetitive Reverse Voltage (Vrrm) | 1.2kV |
| Max Reverse Current | 300uA |
| Max Reverse Leakage Current | 150uA |
| Max Reverse Voltage (DC) | 1.2kV |
| Max Surge Current | 46A |
| Mount | Through Hole |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 46A |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Recovery Time | 0ns |
| RoHS Compliant | Yes |
| Series | Z-Rec® |
| Width | 5.21mm |
Compliance
| RoHS | Compliant |
Datasheet
Cree C4D10120D Datasheet
Download the complete datasheet for Cree C4D10120D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

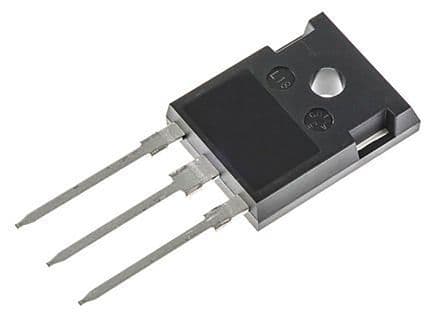

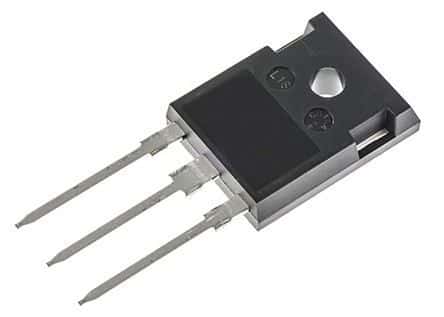

Product Images
