CRYDOM

A53TP50D

Datasheet

50A 530V AC SSR | 4kV Isolation | Panel Mount | Optical

Crydom

A53TP50D

Name: A53TP50D Crydom
Brand: Crydom
SKU: A53TP50D

50A 530V AC SSR | 4kV Isolation | Panel Mount | Optical

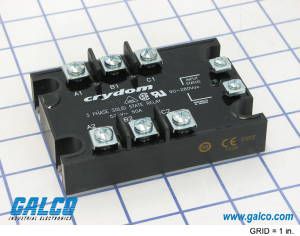

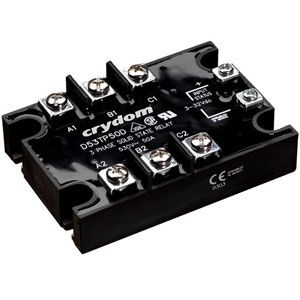

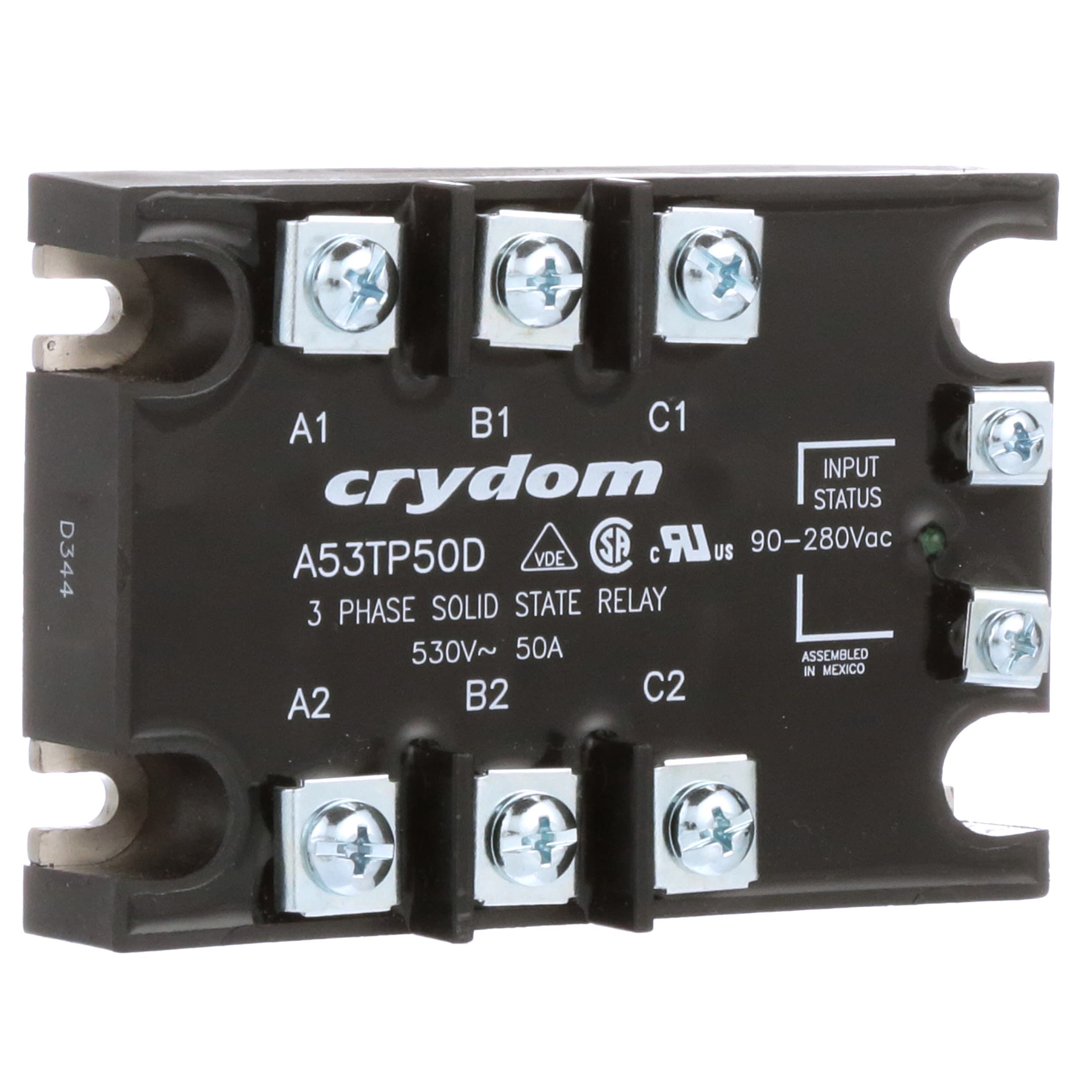

Single-channel, panel-mount solid-state relay (SSR) featuring 50A load current and 530V maximum output voltage. This optical SSR offers 4kV isolation voltage and operates with AC input voltage up to 280V, requiring 4.4mA input current. Designed for demanding applications, it boasts a 625A maximum surge current and a wide operating temperature range of -40°C to 80°C. The module package includes screw termination for secure connections.

PackageModule

MountingPanel, Chassis Mount, Screw

Quick Jump:

Technical Specifications

Crydom A53TP50D technical specifications.

General

Package/Case	Module
Control Voltage	280V
Depth	73.4mm
Height	30mm
Input Current	4.4mA
Input Type	AC
Isolation Voltage	4kV
Isolation Voltage-Max	4kV
Lead Free	Lead Free
Length	103.8mm
Load Current	50A
Max Operating Temperature	80°C
Min Operating Temperature	-40°C
Max Output Voltage	530V
Max Surge Current	625A
Mount	Panel, Chassis Mount, Screw
Output Current	50A
Output Voltage	530V
Package Quantity	10
Packaging	Bulk
Radiation Hardening	No
Reach SVHC Compliant	No
Relay Type	Relay
RoHS Compliant	Yes
Series	53TP
Termination	Screw
Throw Configuration	3PST
Width	75mm
