Single-channel, DC input solid-state relay (SSR) featuring a 30A load current rating and 60V DC maximum output voltage. This optical SSR offers 2500V isolation and a 16mΩ on-state resistance. Designed for versatile mounting options including DIN rail, panel, and screw terminals, it operates within a -40°C to 80°C temperature range. RoHS compliant and lead-free, this relay is suitable for demanding applications.
Current Rating30A
MountingDIN Rail, Panel, Screw, Din-Rail
Quick Jump:
Technical Specifications
Crydom CKM0630 technical specifications.
General
Approvals
UL, CE
Current Rating
30A
Depth
22.5mm
Height
81.9mm
Input Current
11mA
Input Type
DC
Isolation Voltage
2.5kV
Lead Free
Lead Free
Length
81.3mm
Load Current
30A
Max Input Current
11mA
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Max Output Current
30A
Max Output Voltage
60V
Max Supply Voltage (DC)
60V
Min Supply Voltage (DC)
0V
Max Surge Current
90A
Max Voltage Rating (DC)
60V
Mount
DIN Rail, Panel, Screw, Din-Rail
On-State Resistance
16mR
Operating Supply Voltage
60V
Output Current
30A
Package Quantity
20
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Relay Type
Relay
RoHS Compliant
Yes
Series
CKM
Termination
Screw
Throw Configuration
SPST
DC Rated Voltage
-60V
Width
22.5mm
Compliance
RoHS
Compliant
Datasheet
Crydom CKM0630 Datasheet
Download the complete datasheet for Crydom CKM0630 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

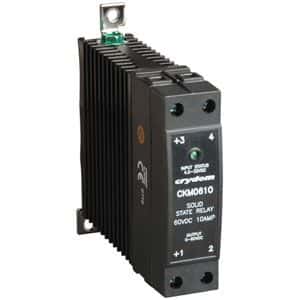

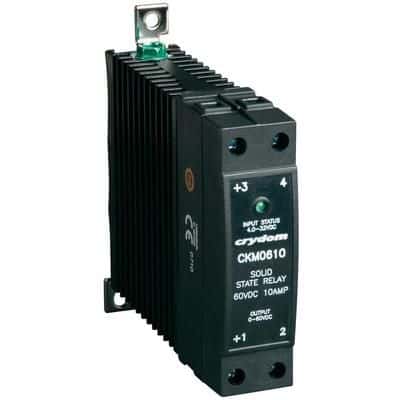

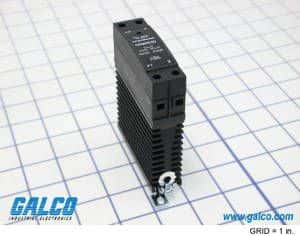

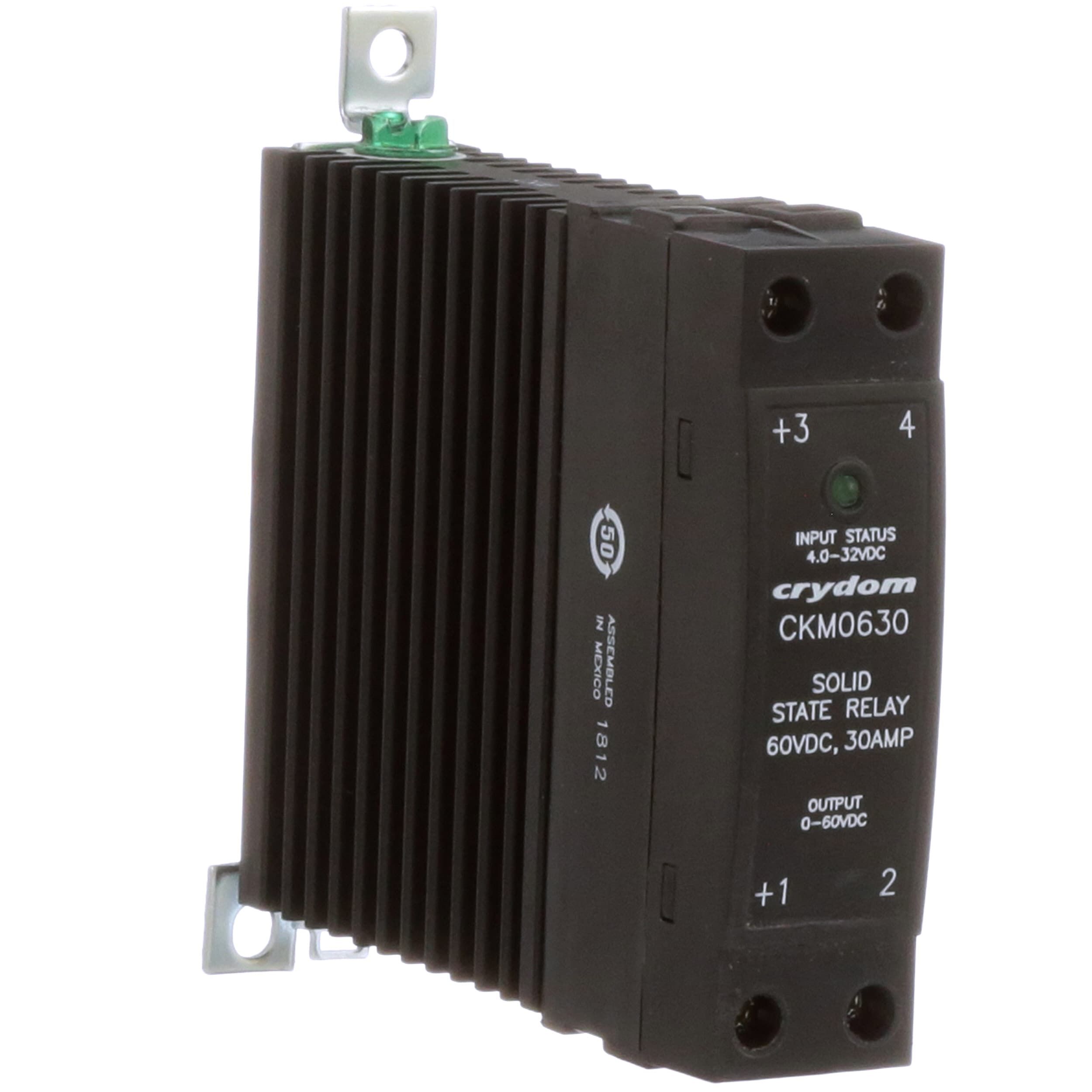

Product Images
