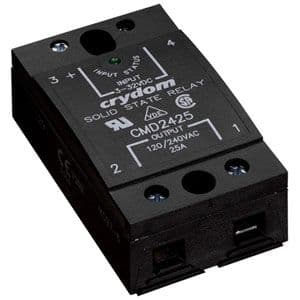

The CMD2425 is a solid state relay with a maximum operating temperature of 80°C and a minimum operating temperature of -40°C. It has a maximum output current of 25A and a maximum output voltage of 280V. The relay is designed for panel mount with screw terminals and is lead free. It is also RoHS compliant and suitable for use with DC input.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom CMD2425 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Depth | 76.2mm |
| Height | 29.2mm |
| Input Type | DC |
| Lead Free | Lead Free |
| Length | 44.5mm |
| Max Input Current | 30mA |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 25A |
| Max Output Voltage | 280V |
| Mount | Panel, Screw |
| RoHS Compliant | Yes |
| Width | 44.5mm |
| RoHS | Compliant |
