Single-channel, DC-input solid-state relay (SSR) with a 45A load current rating and a maximum output voltage of 530V AC. Features 4kV optical isolation and a plastic package with screw termination. Mountable via DIN rail or panel, this RoHS compliant relay operates across a wide temperature range of -40°C to 80°C and holds UL, CSA, VDE, and CE approvals.
Current Rating45A
MountingDIN Rail, Panel
Quick Jump:
Technical Specifications
Crydom CMRD4845 technical specifications.
General
| Approvals | UL, CSA, VDE, CE |
| Control Voltage | 32V |
| Current Rating | 45A |
| Depth | 44.5mm |
| Height | 76.2mm |
| Input Current | 30mA |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Isolation Voltage-Max | 4kV |
| Lead Free | Lead Free |
| Length | 109mm |
| Load Current | 45A |
| Max Input Current | 30mA |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 530V |
| Mount | DIN Rail, Panel |
| Operating Supply Voltage | 530V |
| Output Current | 45A |
| Output Voltage | 530V |
| Package Quantity | 10 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | CMRD48 |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 530V |
| Width | 44.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom CMRD4845 Datasheet
Download the complete datasheet for Crydom CMRD4845 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

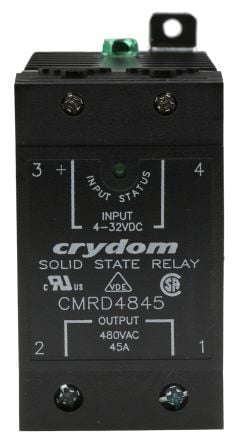

Product Images
