Optical Solid State Relay (SSR) with a 25A current rating and 600V AC voltage rating. Features a 3PST throw configuration and a 32V control voltage. Designed for DIN rail, panel, or screw mounting, this module offers a 300A maximum surge current and operates within a -20°C to 80°C temperature range. Termination is via screw, and the unit is RoHS compliant.
PackageModule
Current Rating25A
MountingDIN Rail, Panel, Screw
Quick Jump:
Technical Specifications
Crydom CTRD6025-10 technical specifications.
General
| Package/Case | Module |
| Control Voltage | 32V |
| Current Rating | 25A |
| Depth | 123.4mm |
| Height | 123.4mm |
| Length | 90mm |
| Load Current | 25A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage | 600V |
| Min Supply Voltage | 48V |
| Max Surge Current | 300A |
| Mount | DIN Rail, Panel, Screw |
| Package Quantity | 10 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Relay Type | Contactor |
| RoHS Compliant | Yes |
| Series | CTR |
| Termination | Screw |
| Throw Configuration | 3PST |
| Turn-On Delay Time | 0.02ms |
| Voltage Rating (AC) | 600V |
| Width | 90mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom CTRD6025-10 Datasheet
Download the complete datasheet for Crydom CTRD6025-10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

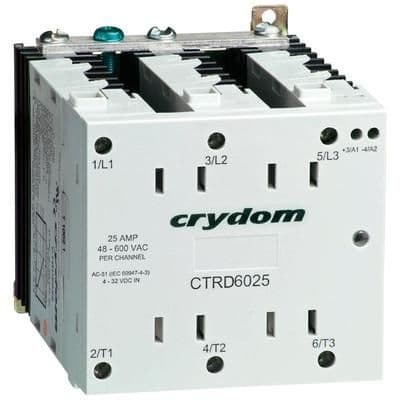

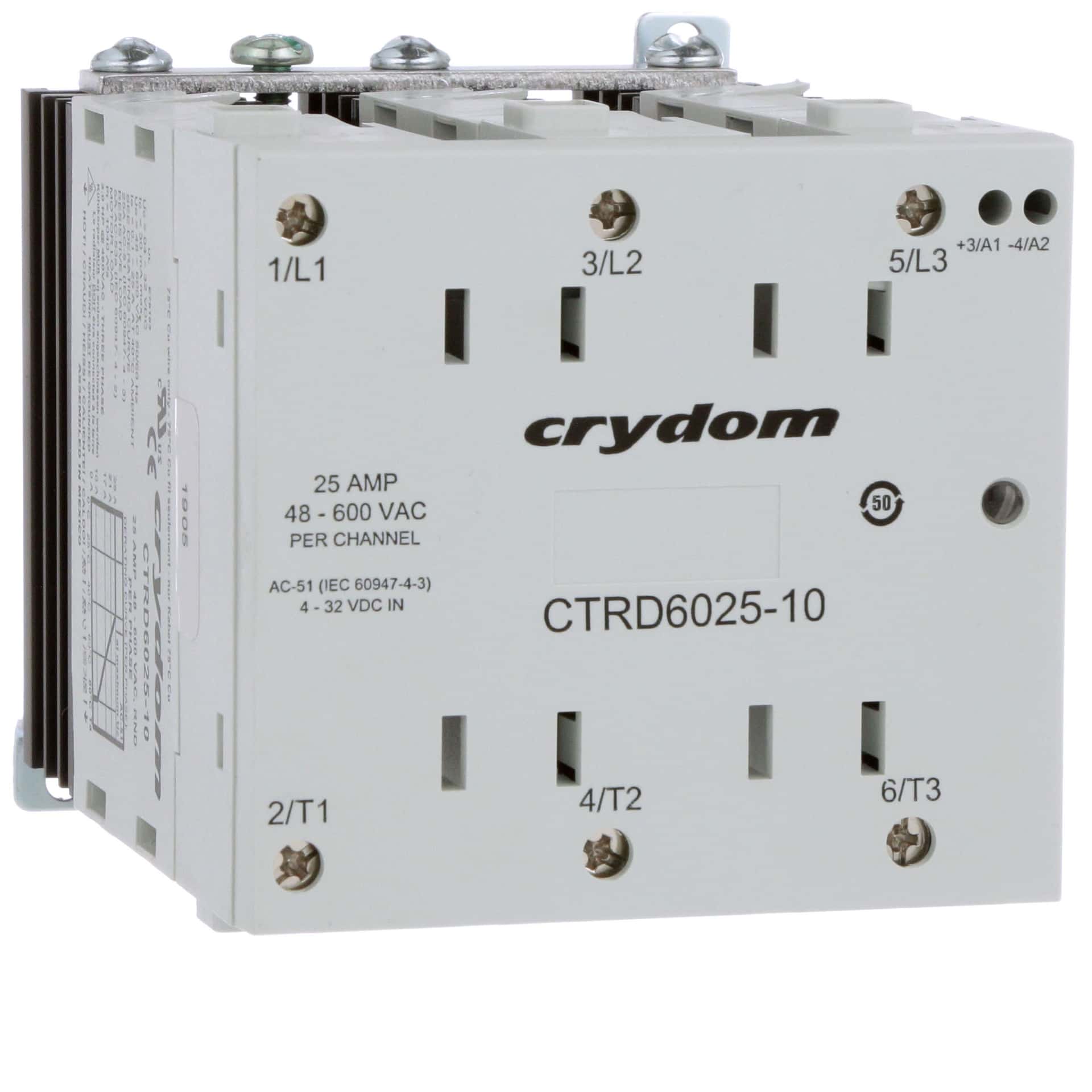

Product Images
