Optical Solid State Relay (SSR) with 1-channel, SPST configuration. Features a 5A load current capacity and a 660V maximum output voltage. Operates with a 15V DC control voltage and 15mA input current. Offers 4kV isolation voltage and is ROHS compliant. Packaged in a SIP case for PCB through-hole mounting, with dimensions of 43.1mm length, 25.4mm width, and 7.6mm depth.
PackageSIP
MountingPCB, Through Hole
Quick Jump:
Technical Specifications
Crydom CX480D5 technical specifications.
General
| Package/Case | SIP |
| Control Voltage | 15V |
| Depth | 7.6mm |
| Height | 25.4mm |
| Input Current | 15mA |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Isolation Voltage-Max | 4kV |
| Lead Free | Lead Free |
| Length | 43.1mm |
| Load Current | 5A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 5A |
| Max Output Voltage | 660V |
| Max Surge Current | 250A |
| Mount | PCB, Through Hole |
| Operating Supply Voltage | 280V |
| Output Current | 5A |
| Output Voltage | 660V |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Throw Configuration | SPST |
| Width | 25.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom CX480D5 Datasheet
Download the complete datasheet for Crydom CX480D5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

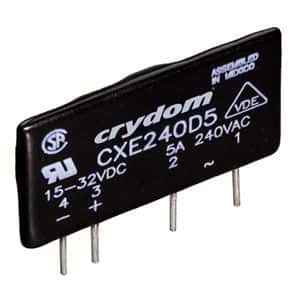

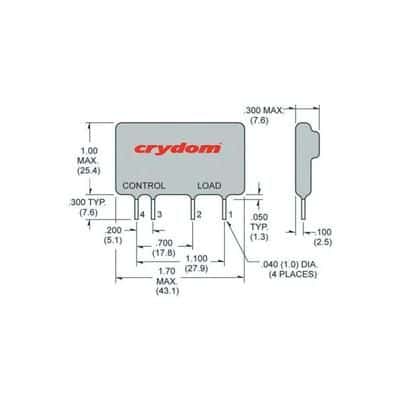

Product Images
