Single-pole, single-throw (SPST) solid-state relay (SSR) with optical isolation. Features a 20A load current capacity and a 100V maximum output voltage. Operates with a 32V DC control voltage and requires 28mA input current. Offers 2.5kV isolation voltage and a panel/chassis/surface mount design with screw termination. RoHS compliant and operates within a -20°C to 80°C temperature range.
MountingPanel, Chassis Mount, Surface Mount, Screw
Quick Jump:
Technical Specifications
Crydom D1D20 technical specifications.
General
Control Voltage
32V
Depth
58.4mm
Height
23mm
Input Current
28mA
Input Type
DC
Isolation Voltage
2.5kV
Isolation Voltage-Max
2.5kV
Lead Free
Lead Free
Length
58.4mm
Load Current
20A
Max Input Current
28mA
Max Input Voltage
32V
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Max Output Current
20A
Max Output Voltage
100V
Max Supply Voltage (DC)
100V
Min Supply Voltage (DC)
0V
Mount
Panel, Chassis Mount, Surface Mount, Screw
On-State Resistance
100mR
Operating Supply Voltage
100V
Output Current
20A
Output Voltage
100V
Package Quantity
20
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Relay Type
Relay
RoHS Compliant
Yes
Series
1-DC
Termination
Screw
Throw Configuration
SPST
Width
45.7mm
Compliance
RoHS
Compliant
Datasheet
Crydom D1D20 Datasheet
Download the complete datasheet for Crydom D1D20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

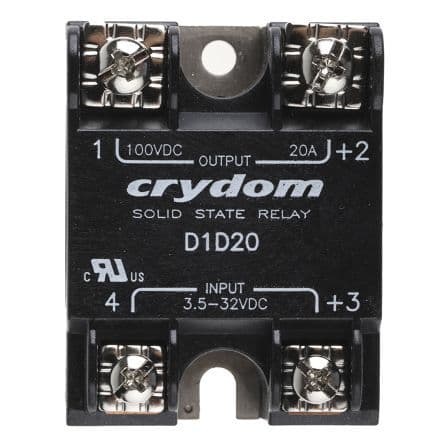

Product Images
