50A, 530VDC output solid-state relay with DC control voltage up to 32V and 10mA input current. Features 4kV optical isolation and a 3PST throw configuration. Designed for panel or chassis mounting with screw termination, this RoHS compliant module operates from -40°C to 80°C.
PackageModule
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom D53TP50D technical specifications.
General
| Package/Case | Module |
| Control Voltage | 32V |
| Depth | 73.4mm |
| Height | 30mm |
| Input Current | 10mA |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Isolation Voltage-Max | 4kV |
| Lead Free | Lead Free |
| Length | 103.8mm |
| Load Current | 50A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 530V |
| Mount | Panel, Chassis Mount, Screw |
| Output Voltage | 530V |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | 53TP |
| Termination | Screw |
| Throw Configuration | 3PST |
| Width | 75mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom D53TP50D Datasheet
Download the complete datasheet for Crydom D53TP50D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

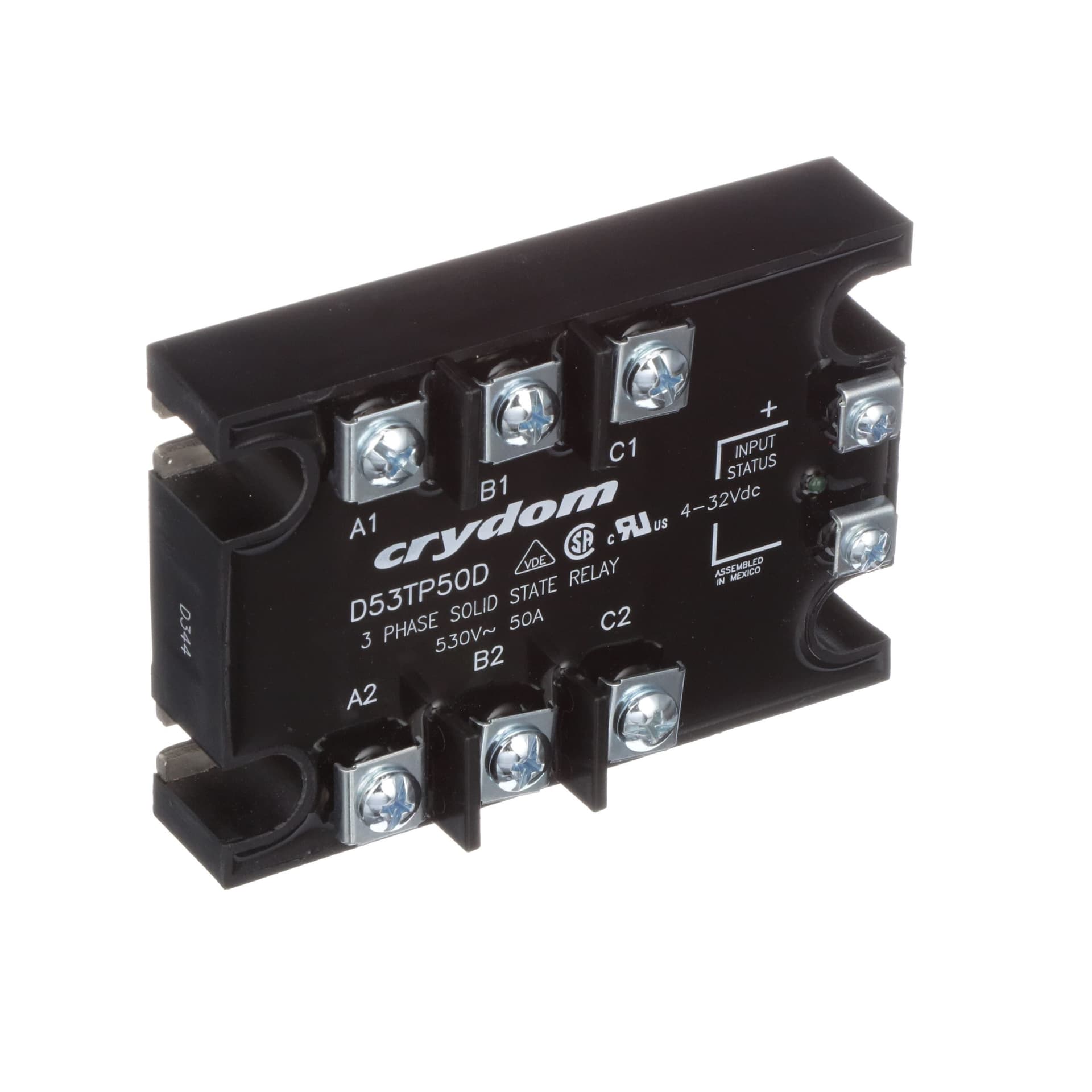

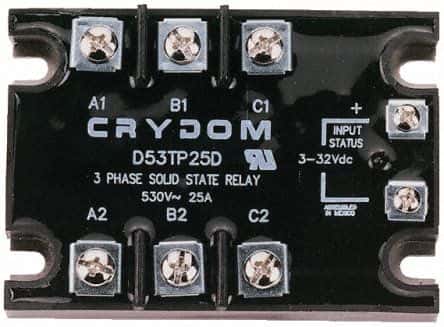

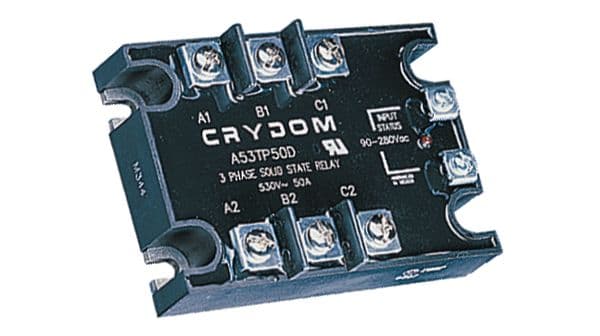

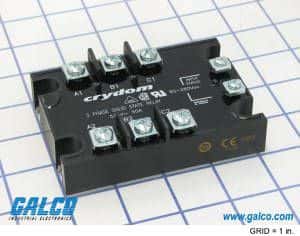

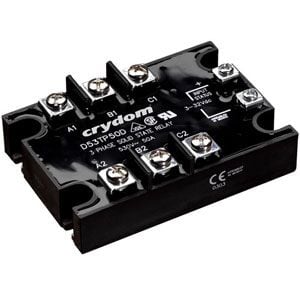

Product Images
