Optical Solid State Relay (SSR) with 1-channel, 3A load current, and 280V AC maximum output voltage. Features 3.75kV isolation voltage and DC control input. Operates within a -30°C to 80°C temperature range. Mounts via socket, DIN rail, or plug-in, with quick connect termination. RoHS compliant.
Current Rating3A
MountingSocket, DIN Rail, Plug-In
Quick Jump:
Technical Specifications
Crydom ED24D3 technical specifications.
General
| Approvals | cULus, IEC |
| Control Voltage | 15V |
| Current Rating | 3A |
| Depth | 12.7mm |
| Height | 28.9mm |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Length | 29mm |
| Load Current | 3A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Voltage | 280V |
| Max Supply Voltage (AC) | 280V |
| Min Supply Voltage (AC) | 24V |
| Max Voltage Rating (AC) | 280V |
| Mount | Socket, DIN Rail, Plug-In |
| Mounting Style | SOCKET |
| Output Current | 3A |
| Output Voltage | 280V |
| Package Quantity | 10 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ED |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Turn-On Delay Time | 8.33ms |
| Voltage Rating (AC) | 280V |
| Weight | 0.656096oz |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom ED24D3 Datasheet
Download the complete datasheet for Crydom ED24D3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

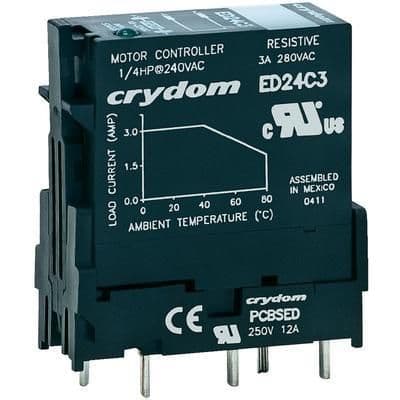

Product Images
