Technical Specifications
Crydom H12D4840D technical specifications.
General
| Height | 58.4mm |
| Input Current | 13mA |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Lead Free | Lead Free |
| Length | 45.7mm |
| Load Current | 40A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 40A |
| Max Output Voltage | 530V |
| Mount | Panel, Chassis Mount, Screw |
| Output Current | 40A |
| Package Quantity | 20 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | H12D |
| Termination | Quick Connect |
| Throw Configuration | DPST |
| Width | 33.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom H12D4840D Datasheet
Download the complete datasheet for Crydom H12D4840D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

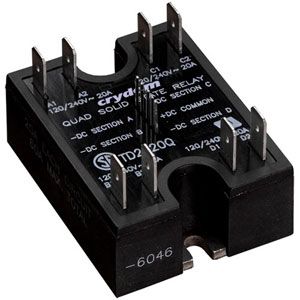

Product Images
