Optical Solid State Relay (SSR) with 50A load current rating and 530V AC maximum output voltage. Features 4kV isolation voltage, DC input type with 2mA input current, and operates within a -40°C to 80°C temperature range. Panel or chassis mountable via screw termination, this SPST relay is ROHS compliant and UL, CSA, VDE, CE approved.
Capacitance8pF
Current Rating50A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom HD4850-10 technical specifications.
General
Approvals
UL, CSA, VDE, CE
Capacitance
8pF
Current Rating
50A
Depth
19.8mm
Height
58.4mm
Input Current
2mA
Input Type
DC
Isolation Voltage
4kV
Lead Free
Lead Free
Length
45.7mm
Load Current
50A
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Max Output Current
50A
Max Output Voltage
530V
Max Supply Voltage (AC)
530V
Min Supply Voltage (AC)
48V
Max Voltage Rating (AC)
530V
Mount
Panel, Chassis Mount, Screw
Output Current
50A
Package Quantity
20
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Relay Type
Relay
RoHS Compliant
Yes
Series
HD
Termination
Screw
Throw Configuration
SPST
Voltage Rating (AC)
530V
Width
22.9mm
Compliance
RoHS
Compliant
Datasheet
Crydom HD4850-10 Datasheet
Download the complete datasheet for Crydom HD4850-10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

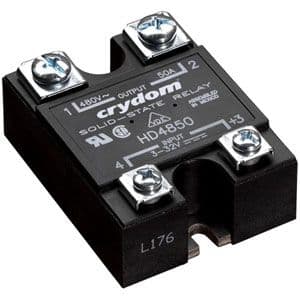

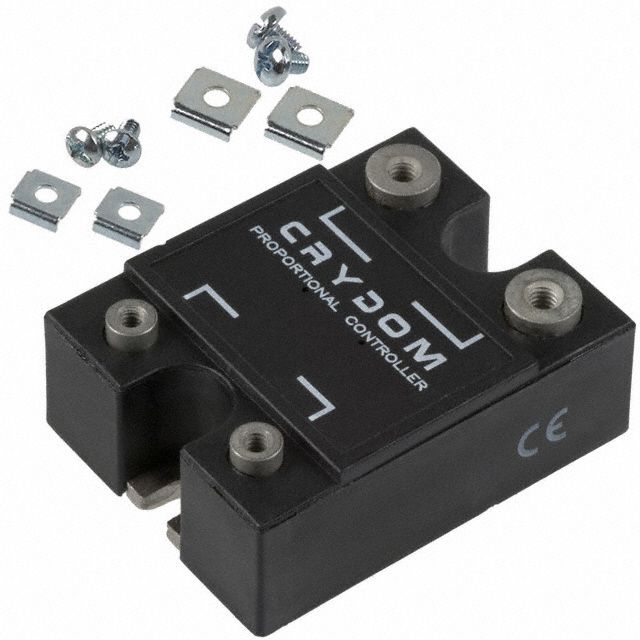

Product Images
