Single-channel, DC input solid-state relay (SSR) with a 90A load current capacity and a maximum output voltage of 530V. Features 4kV optical isolation and a 32V control voltage. Designed for panel or chassis mounting with screw termination, this RoHS compliant relay operates within a temperature range of -40°C to 80°C.
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom HD4890 technical specifications.
General
| Control Voltage | 32V |
| Depth | 45.7mm |
| Height | 23mm |
| Input Current | 2mA |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Isolation Voltage-Max | 4kV |
| Lead Free | Lead Free |
| Length | 58.4mm |
| Load Current | 90A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 90A |
| Max Output Voltage | 530V |
| Max Surge Current | 1.2kA |
| Mount | Panel, Chassis Mount, Screw |
| Output Current | 90A |
| Output Voltage | 530V |
| Package Quantity | 20 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | HD |
| Termination | Screw |
| Throw Configuration | SPST |
| Width | 45.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom HD4890 Datasheet
Download the complete datasheet for Crydom HD4890 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

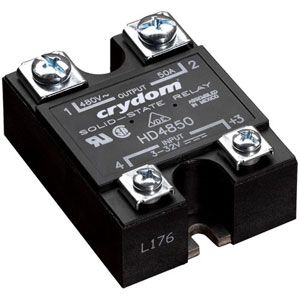

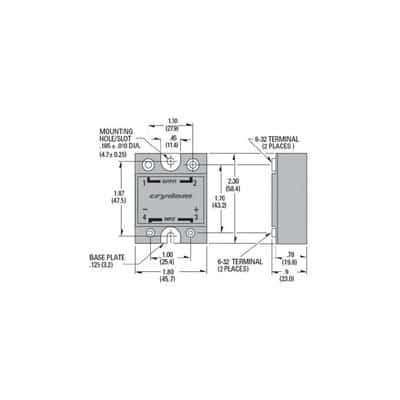

Product Images
