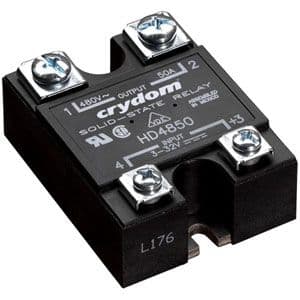

Single-channel, optical solid-state relay (SSR) designed for demanding applications. Features a 50A load current rating and a maximum output voltage of 660V AC. Operates with a 3-32V DC control voltage and requires 12mA input current. Offers robust 4kV isolation voltage and is RoHS compliant. Panel or screw mountable with screw termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom HD6050 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Crydom HD6050 technical specifications.
| Approvals | UL, CSA, VDE, CE |
| Control Voltage | 32V |
| Current Rating | 50A |
| Depth | 45.7mm |
| Height | 23mm |
| Input Current | 12mA |
| Input Type | DC |
| Isolation Voltage | 4kV |
| Isolation Voltage-Max | 4kV |
| Lead Free | Lead Free |
| Length | 58.4mm |
| Load Current | 50A |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 50A |
| Max Output Voltage | 660V |
| Max Power Dissipation | 500mW |
| Max Supply Voltage | 660V |
| Min Supply Voltage | 48V |
| Mount | Panel, Screw |
| Output Current | 50A |
| Output Voltage | 660V |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | HA / HD Series |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 660V |
| Width | 22.9mm |
| RoHS | Compliant |
