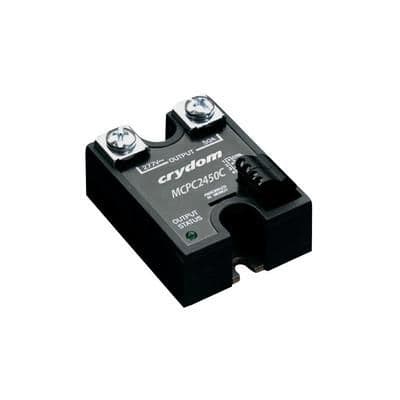

Single-channel, DC-controlled solid-state relay (SSR) featuring 4kV optical isolation. Rated for 25A load current and 280V output voltage, with a maximum surge current of 250A. Panel or chassis mountable via screw termination, this RoHS compliant component operates with a 32V control voltage and 240V operating supply voltage.
Current Rating25A
MountingPanel, Chassis Mount, Screw
Quick Jump:
Technical Specifications
Crydom MCPC2425C technical specifications.
General
| Control Voltage | 32V |
| Current Rating | 25A |
| Height | 23mm |
| Input Current | 25A |
| Input Type | DC |
| Isolation Voltage-Max | 4kV |
| Lead Free | Lead Free |
| Length | 58.4mm |
| Load Current | 25A |
| Max Input Current | 30mA |
| Max Surge Current | 250A |
| Mount | Panel, Chassis Mount, Screw |
| Operating Supply Voltage | 240V |
| Output Voltage | 280V |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | MCPC |
| Termination | Screw |
| Thickness | 0.78inch |
| Throw Configuration | SPST |
| Width | 45.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom MCPC2425C Datasheet
Download the complete datasheet for Crydom MCPC2425C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
