Optical Solid State Relay (SSR) featuring a 1.5A load current rating and a 280V maximum output voltage. This single-channel SSR offers 3.75kV isolation and operates with a DC input current of 35mA. Designed for PCB mounting via through-hole technology, it is housed in a PDIP package and is RoHS compliant. The relay supports a maximum surge current of 30A and operates within a temperature range of -30°C to 80°C.
PackagePDIP
Current Rating1.5A
MountingPCB, Through Hole
Quick Jump:
Technical Specifications
Crydom SDI2415 technical specifications.
General
| Package/Case | PDIP |
| Control Current | -35mA |
| Current Rating | 1.5A |
| Depth | 6.73mm |
| Height | 4.8mm |
| Input Current | 35mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Lead Free | Lead Free |
| Length | 21.59mm |
| Load Current | 1.5A |
| Max Input Current | 35mA |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Voltage | 280V |
| Max Surge Current | 30A |
| Mount | PCB, Through Hole |
| Output Current | 1.5A |
| Package Quantity | 22 |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | SDI |
| Voltage Rating (AC) | 240V |
| Width | 6.7mm |
Compliance
| RoHS | Compliant |
Datasheet
Crydom SDI2415 Datasheet
Download the complete datasheet for Crydom SDI2415 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

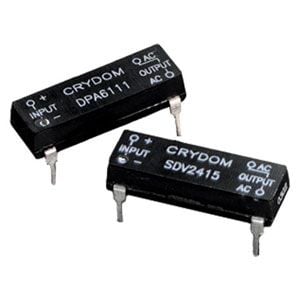

Product Images
