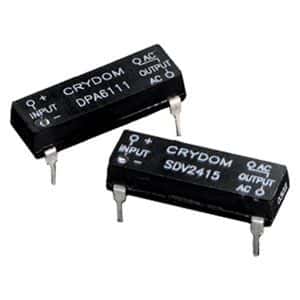

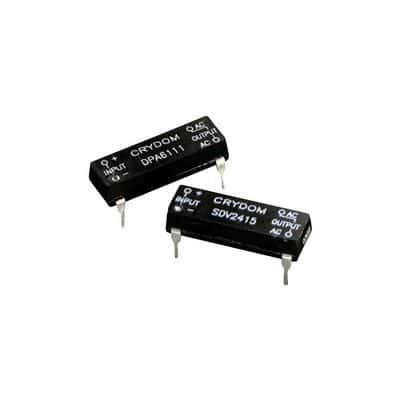

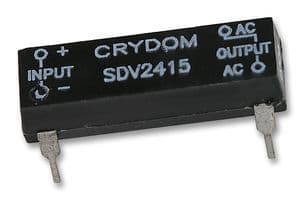

1.5A, 280V AC output solid-state relay (SSR) with 3.75kV isolation. Features a 10V DC control voltage, 15mA input current, and PDIP package for PCB mounting. Operates within a -30°C to 80°C temperature range, offering 30A surge capability. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Crydom SDV2415 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Crydom SDV2415 technical specifications.
| Package/Case | PDIP |
| Control Voltage | 10V |
| Depth | 6.73mm |
| Height | 4.8mm |
| Input Current | 15mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Isolation Voltage-Max | 3.75kV |
| Lead Free | Lead Free |
| Length | 21.59mm |
| Load Current | 1.5A |
| Max Input Current | 15mA |
| Max Input Voltage | 10V |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Voltage | 280V |
| Max Supply Voltage (AC) | 280V |
| Min Supply Voltage (AC) | 12V |
| Max Surge Current | 30A |
| Max Voltage Rating (AC) | 280V |
| Mount | PCB, Through Hole |
| Operating Supply Voltage | 60V |
| Output Current | 1.5A |
| Output Voltage | 280V |
| Package Quantity | 22 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SDV |
| Termination | Solder |
| Throw Configuration | SPST |
| Width | 6.7mm |
| RoHS | Compliant |
