CRYDOM

SDV2415R

Datasheet

DC Input SSR, 1.5A, 280V AC, 3.75kV Isolation, DIP

Crydom

SDV2415R

Name: SDV2415R Crydom
Brand: Crydom
SKU: SDV2415R

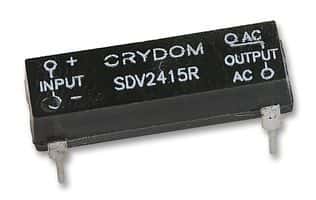

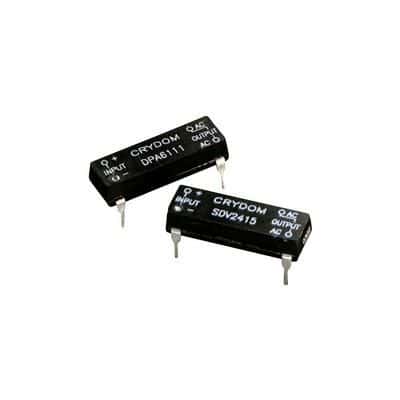

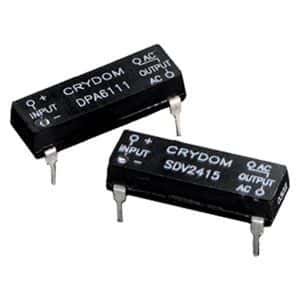

DC Input SSR, 1.5A, 280V AC, 3.75kV Isolation, DIP

Single-pole, single-throw (SPST) solid-state relay (SSR) with optical isolation, featuring a 1.5A load current capacity and a maximum output voltage of 280V AC. This through-hole mount, DIP-packaged SSR operates with a 10V DC control voltage and requires 15mA input current. It offers 3.75kV isolation voltage and a wide operating temperature range from -30°C to 80°C.

PackageDIP

MountingThrough Hole

Quick Jump:

Technical Specifications

Crydom SDV2415R technical specifications.

General

Package/Case	DIP
Control Voltage	10V
Height	4.8mm
Input Current	15mA
Input Type	DC
Isolation Voltage	3.75kV
Isolation Voltage-Max	3.75kV
Lead Free	Lead Free
Length	21.6mm
Load Current	1.5A
Max Operating Temperature	80°C
Min Operating Temperature	-30°C
Max Output Voltage	280V
Max Supply Voltage (AC)	280V
Min Supply Voltage (AC)	12V
Max Surge Current	30A
Max Voltage Rating (AC)	280V
Mount	Through Hole
Operating Supply Voltage	60V
Output Current	1.5A
Output Voltage	280V
Package Quantity	22
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	SDV
Termination	Solder
Throw Configuration	SPST
Width	6.7mm
