Technical Specifications
Fair-Rite 2518065007Y6 technical specifications.
General
| Case Code (Imperial) | 1806 |
| Case Code (Metric) | 4516 |
| Package/Case | 1806 |
| Depth | 1.6mm |
| Height | 1.6mm |
| Impedance | 50R |
| Length | 4.5mm |
| Max Current Rating | 6A |
| Max DC Current | 6A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Number of Lines | 1 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Tolerance | 25% |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Fair-Rite 2518065007Y6 Datasheet
Download the complete datasheet for Fair-Rite 2518065007Y6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

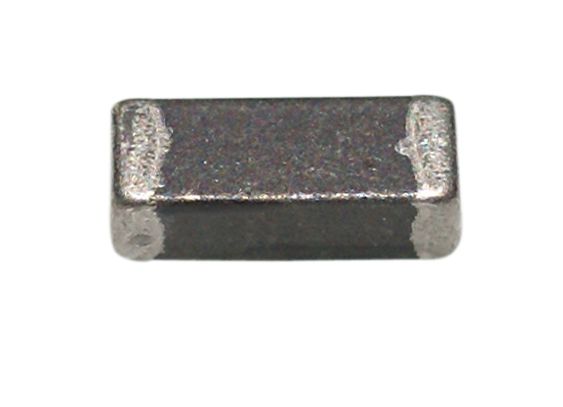

Product Images
