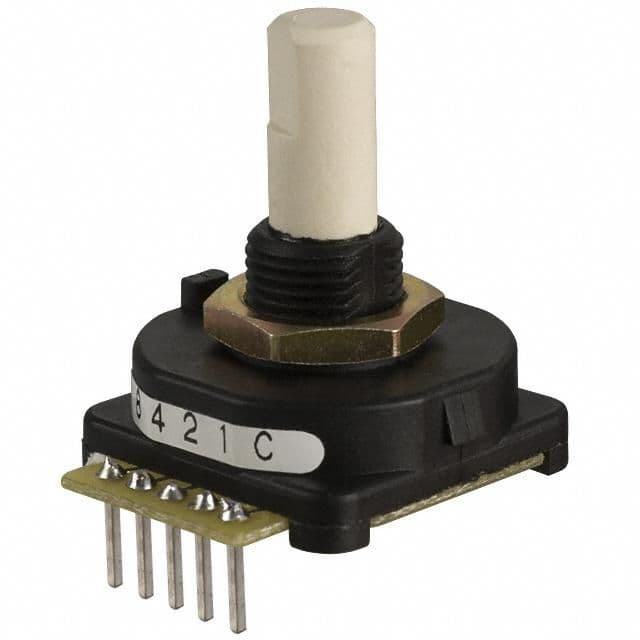

The 25LB22-G is a 16-position 4-channel mechanical absolute encoder with a nominal supply voltage of 14V. It features a current rating of 1.5mA and a contact current rating of 250mA. The encoder is designed for through hole, panel, or PCB mount and operates within a temperature range of -40°C to 85°C. The 25LB22-G is compliant with RoHS regulations and is packaged in a tray with one unit per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 25LB22-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Built in Switch | No |
| Contact Current Rating | 250mA |
| Current Rating | 1.5mA |
| Detent | Yes |
| Encoder Type | Mechanical |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Panel, PCB |
| Nominal Supply Voltage (DC) | 14V |
| Number of Channels | 4 |
| Number of Positions | 16 |
| Orientation | Vertical |
| Package Quantity | 1 |
| Packaging | Tray |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | 25L |
| Termination | PC Pin |
| RoHS | Compliant |
