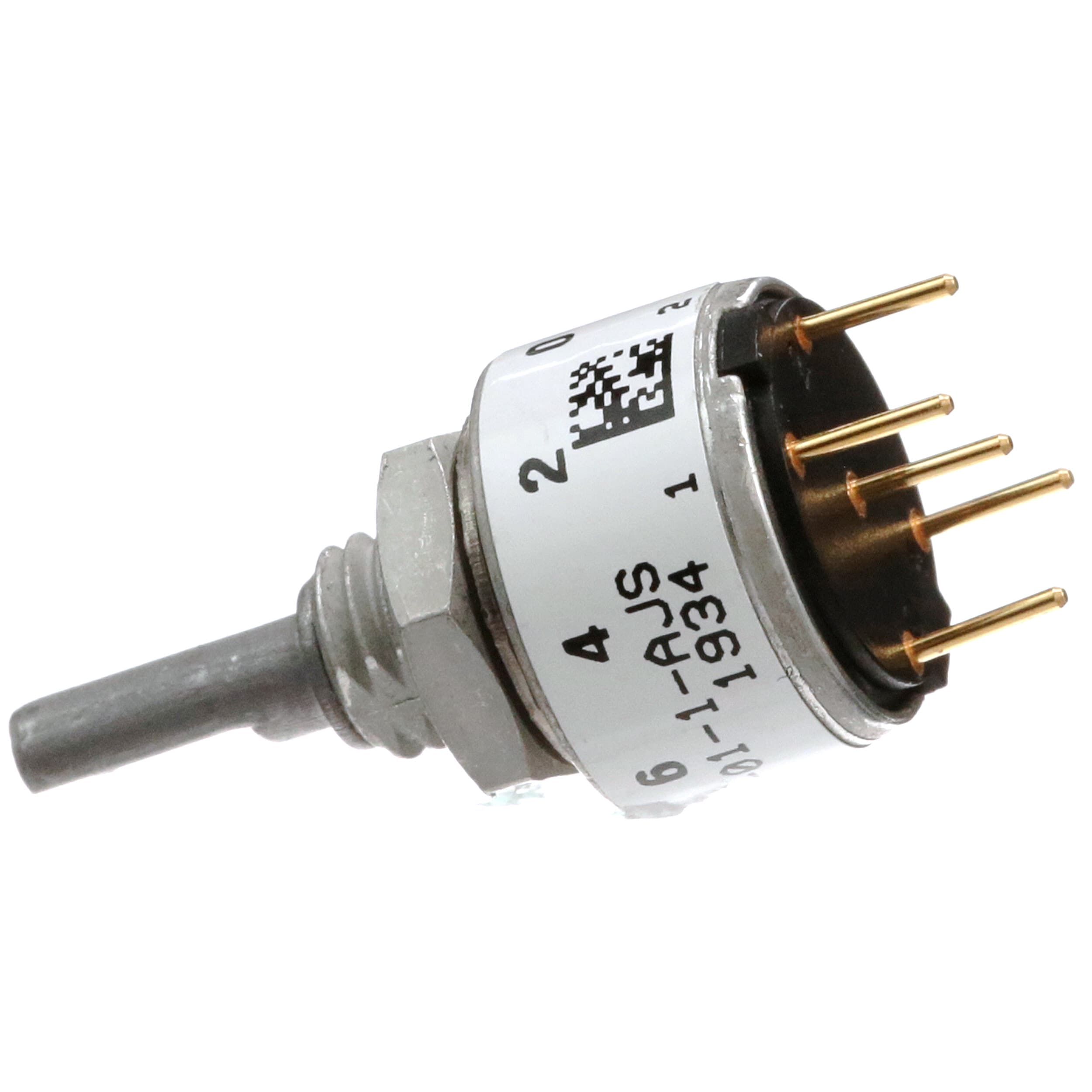

Vertical mechanical rotary position encoder featuring 16 positions and 4 channels, providing BCD and Binary output. Offers a built-in switch with gold contact material and detent functionality. Designed for through-hole, panel, and PCB mounting with PC pin termination. Rated for 10mA current and an electrical life of 25,000 cycles, operating within a -40°C to 85°C temperature range. RoHS compliant and available in bulk packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 26ASD22-01-1-AJS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Grayhill 26ASD22-01-1-AJS technical specifications.
| Built in Switch | Yes |
| Contact Material | Gold |
| Current Rating | 10mA |
| Detent | Yes |
| Electrical Life | 25000Cycles |
| Encoder Type | Mechanical |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Panel, PCB |
| Number of Channels | 4 |
| Number of Decks | 1 |
| Number of Positions | 16 |
| Orientation | Vertical |
| Output Type | BCD, Binary |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 4b |
| RoHS Compliant | Yes |
| Series | 26 |
| Termination | PC Pins |
| Type | Mechanical |
| RoHS | Compliant |
Download the complete datasheet for Grayhill 26ASD22-01-1-AJS to view detailed technical specifications.
