Grayhill
26ASD45-01-1-AJS
Mechanical Encoder Rotary Flat 0.056N.m Straight BCD 8PPR Through Hole PC Pin
Current Rating10mA
MountingThrough Hole, Panel, PCB
Quick Jump:
Technical Specifications
Grayhill 26ASD45-01-1-AJS technical specifications.
General
Built in Switch
No
Current Rating
10mA
Detent
Yes
Encoder Type
Mechanical
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, Panel, PCB
Number of Channels
4
Number of Positions
8
Orientation
Vertical
Output Type
BCD, Binary, Octal
Package Quantity
1
Reach SVHC Compliant
No
Resolution
4b
RoHS Compliant
Yes
Series
26
Termination
PC Pin
Compliance
RoHS
Compliant
Datasheet
Grayhill 26ASD45-01-1-AJS Datasheet
Download the complete datasheet for Grayhill 26ASD45-01-1-AJS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

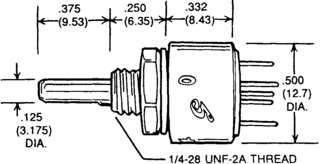

Product Images
