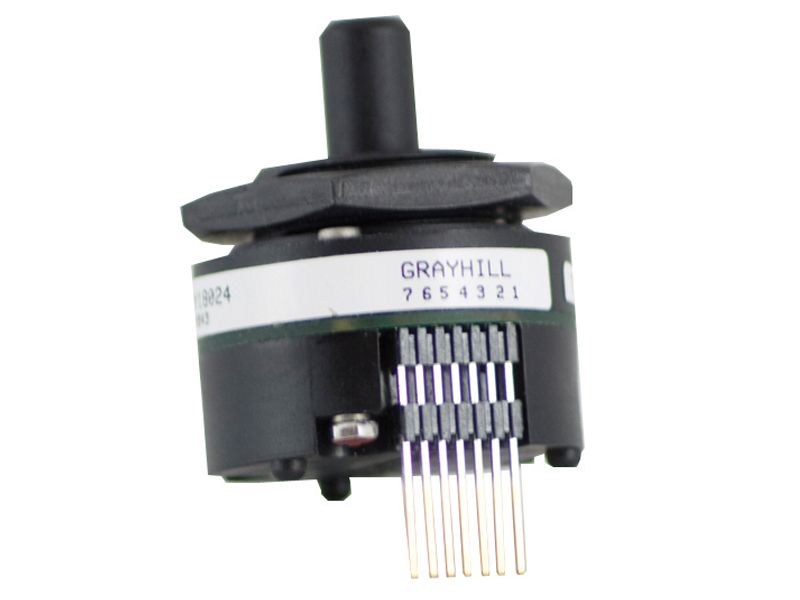

This optical incremental encoder features a built-in switch and is available in a through-hole, panel, and PCB mount configuration. The encoder is designed for operation within a temperature range of -40 to 85°C and is compliant with RoHS regulations. The output type is quadrature and incremental, and the termination is via PC pin. The encoder is constructed with a tin, matte contact plating and is lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 60A00-8-020C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Built in Switch | Yes |
| Contact Plating | Tin, Matte |
| Detent | No |
| Encoder Type | Optical |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Panel, PCB |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| RoHS Compliant | Yes |
| Series | 60A |
| Termination | PC Pin |
| RoHS | Compliant |
