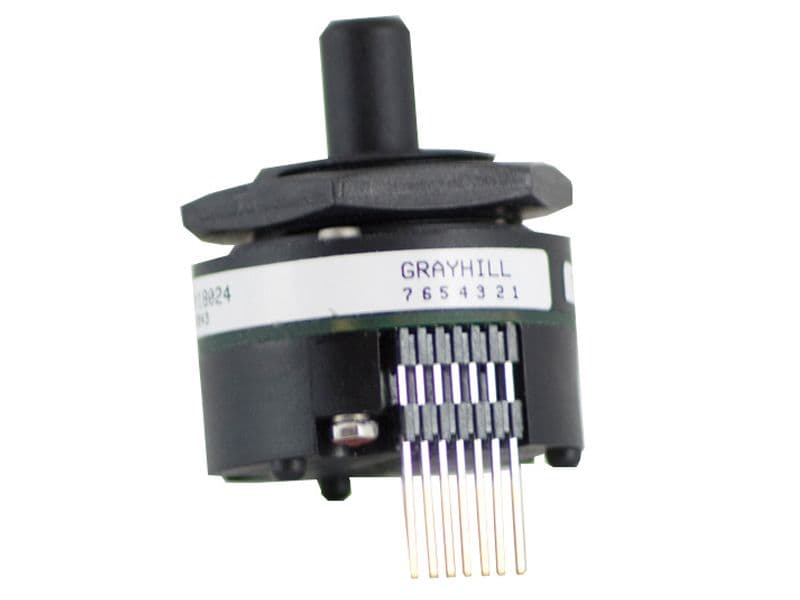

The Grayhill 60A18-4-060S is a 4-axis optical encoder with a contact current rating of 20mA and a mechanical life of 1000000 cycles. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The encoder is lead free and RoHS compliant. It is mounted on a panel and has a vertical orientation. The output type is quadrature and incremental.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 60A18-4-060S datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Built in Switch | Yes |
| Contact Current Rating | 20mA |
| Contact Material | Stainless Steel |
| Contact Plating | Bronze, Tin, Lead |
| Detent | Yes |
| Encoder Type | Optical |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Panel |
| Number of Axes | 4 |
| Number of Positions | 20 |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| RoHS Compliant | Yes |
| Series | 60A |
| Termination | Cable |
| RoHS | Compliant |
