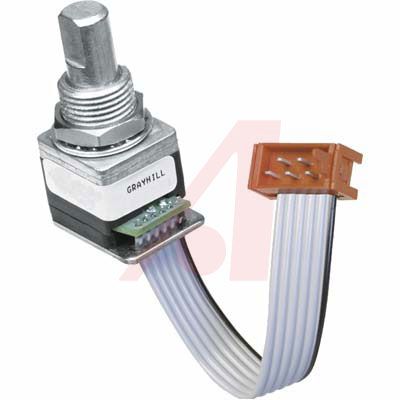

The Grayhill 62A15-02-060C is an optical 2-channel absolute encoder with a thermoplastic material and a panel mount package type. It has a current rating of 10mA and a maximum operating temperature of 85°C. The encoder operates at 5V with a power dissipation of 150mW. It is RoHS compliant and has a DC rated voltage of 5V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 62A15-02-060C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Built in Switch | Yes |
| Current Rating | 10mA |
| Detent | Yes |
| Encoder Type | Optical |
| Material | Thermoplastic |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Panel, Surface Mount |
| Number of Channels | 2 |
| Operating Supply Voltage | 5V |
| Output Type | Quadrature, Incremental |
| Package Quantity | 1 |
| Packaging | Tray |
| Power Dissipation | 150mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 62A |
| Termination | Cable |
| DC Rated Voltage | 5V |
| RoHS | Compliant |
Download the complete datasheet for Grayhill 62A15-02-060C to view detailed technical specifications.
