Vertical panel-mount optical encoder with quadrature, incremental output. Features a built-in switch and detent for tactile feedback. Operates across a wide temperature range from -40°C to 85°C. Tin contact plating ensures reliable connections, with lead-free and RoHS compliance. Termination via cable.
MountingPanel
Quick Jump:
Technical Specifications
Grayhill 62AG22-L5-040C technical specifications.
General
Built in Switch
Yes
Contact Plating
Tin
Detent
Yes
Encoder Type
Optical
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Channels
2
Orientation
Vertical
Output Type
Quadrature, Incremental
Package Quantity
1
Packaging
Tray
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
62AG
Termination
Cable
Compliance
RoHS
Compliant
Datasheet
Grayhill 62AG22-L5-040C Datasheet
Download the complete datasheet for Grayhill 62AG22-L5-040C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

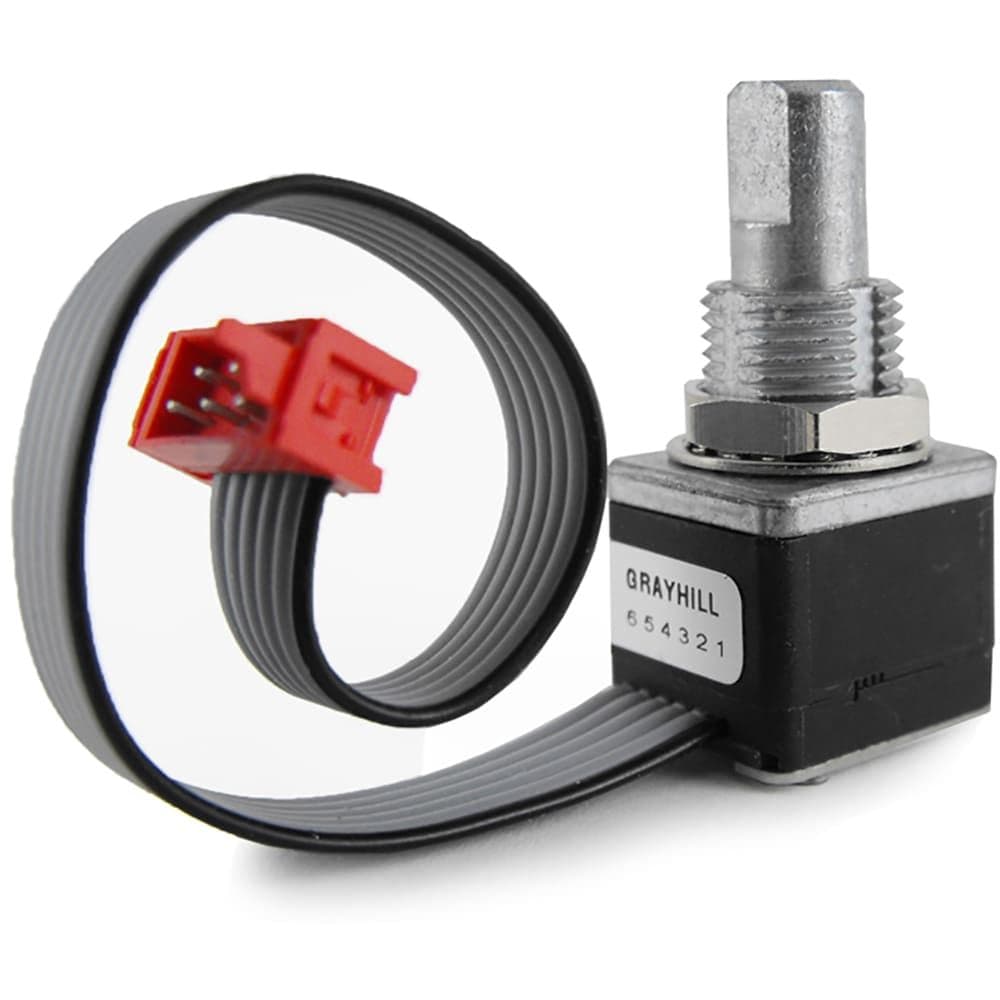

Product Images
