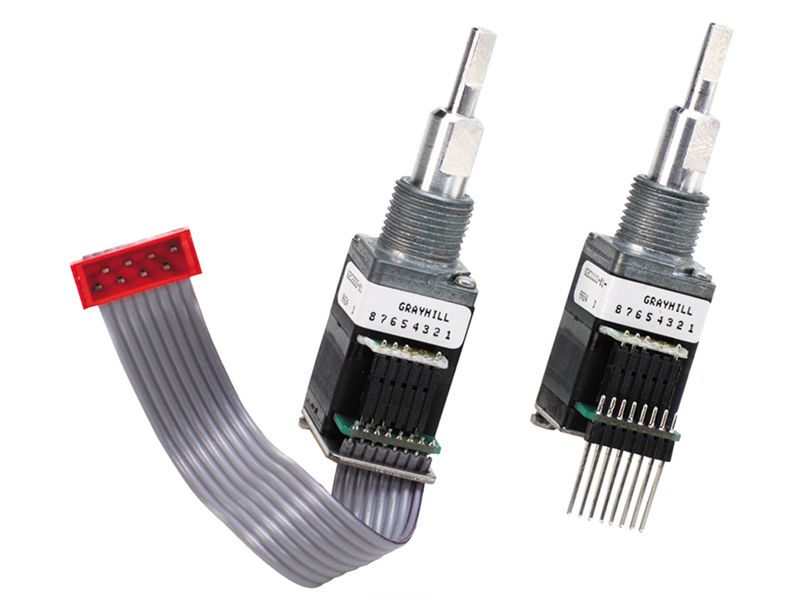

This 24-position concentric optical encoder features a vertical orientation and operates within a temperature range of -40°C to 85°C. It is designed with a lead-free construction and is compliant with RoHS regulations. The encoder is mounted through a hole, panel, or PCB and is available in a single unit quantity. The output type is quadrature and incremental, making it suitable for various applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Grayhill 62C1515-01-P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Type | Concentric |
| Built in Switch | No |
| Contact Plating | Brass, Tin |
| Detent | Yes |
| Encoder Type | Optical |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, Panel, PCB |
| Number of Positions | 24 |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Series | 62C |
| Termination | PC Pin |
| RoHS | Compliant |
