Technical Specifications
Grayhill 62M15-M2-040CH technical specifications.
General
| Built in Switch | Yes |
| Contact Plating | Tin |
| Detent | Yes |
| Encoder Type | Optical |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount, Panel |
| Nominal Supply Voltage (DC) | 5V |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Series | 62M |
| Termination | Cable |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 62M15-M2-040CH Datasheet
Download the complete datasheet for Grayhill 62M15-M2-040CH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

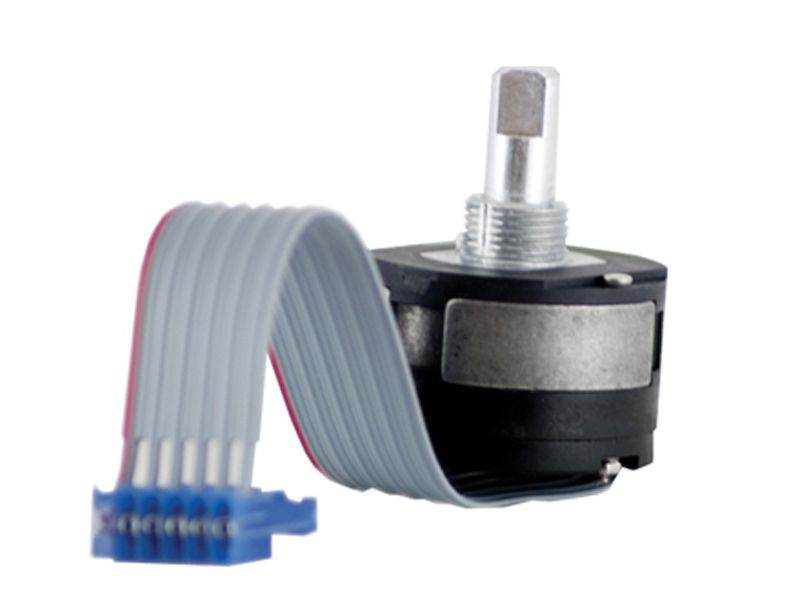

Product Images
