The 62S11-H9-PH optical encoder features a built-in switch and detent, with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It is available in a RoHS compliant package-6 and is lead free. The encoder is designed for through hole and PCB mount applications, with a vertical orientation and quadrature, incremental output type.
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Grayhill 62S11-H9-PH technical specifications.
General
| Built in Switch | Yes |
| Contact Plating | Tin |
| Detent | Yes |
| Encoder Type | Optical |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 1 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | 62S |
| Termination | PC Pin |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 62S11-H9-PH Datasheet
Download the complete datasheet for Grayhill 62S11-H9-PH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

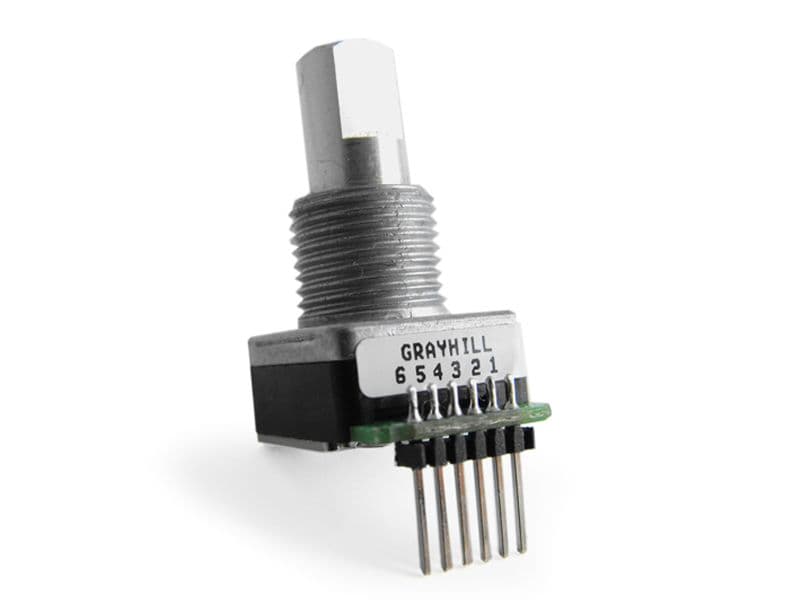

Product Images
